SL 11 097 8 Z

Headers, Male Pins Overview

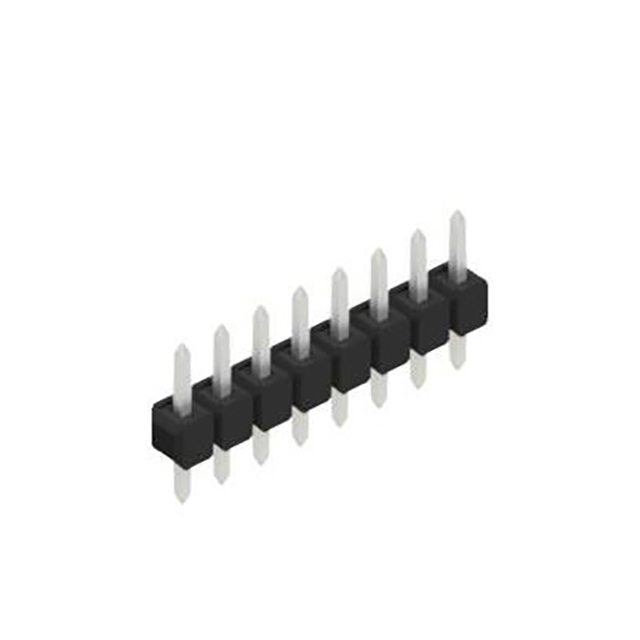

The SL 11 097 8 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 8 positions with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The contacts are tin-plated copper alloy pins with a mating length of 3.30 mm and a column length of 3.00 mm. The total contact length measures 6.30 mm. The housing is constructed from polyamide (PA46), providing an insulation height of 3.9 mm. The component operates within a temperature range of -40°C to +163°C and supports reflow soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Precision-engineered compact design suitable for space-constrained PCB layouts
• Through-hole mounting configuration ensures secure mechanical attachment
• Tin-plated contacts provide reliable electrical conductivity and corrosion resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly requiring male pin headers

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 097 8 Z against official Fischer Elektronik documentation to confirm the 8-position count and tin plating specification. Ensure compatibility with standard 2.54 mm pitch footprints. Check for RoHS compliance status in the latest datasheet. Confirm that the operating temperature range meets your application requirements. Cross-reference the manufacturer's ordering suffixes to avoid confusion with similar series variants.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for through-hole applications. The 2.54 mm pitch is standard for general-purpose electronics. Consider the 3.30 mm insertion depth for PCB thickness compatibility. The PA46 insulation material offers good thermal stability. Evaluate the 8-position count against signal routing needs. Ensure the tin plating thickness meets environmental durability requirements.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series is characterized by straight male pins designed for reliable board-to-board or wire-to-board connections. The SL 11 series typically utilizes polyamide insulation and tin-plated contacts. This specific model represents a smaller variant within the series, offering 8 positions compared to higher-count options available in the same product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with matching pitch and position counts, such as SL 11 097 10 Z or SL 11 097 6 Z, depending on terminal requirements. Generic equivalents with 2.54 mm pitch and through-hole mounting may be considered if mechanical dimensions align. Verify contact plating and insulation material specifications before substitution.
