SL 11 097 9 G

Headers, Male Pins Overview

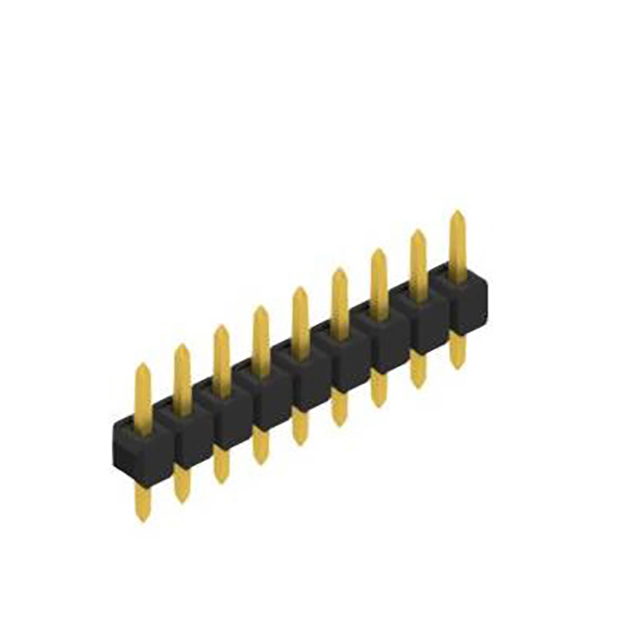

The Fischer Elektronik SL 11 097 9 G is a male header connector designed for through-hole PCB mounting. It features a single row of contacts with a standard 2.54 mm pitch. The unit contains nine positions, accommodating a total of nine pins. The contact material consists of copper alloy, specifically CuSn, which provides mechanical stability and conductivity. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance over time. This component is rated for a maximum current of 3 A and supports voltages up to 250 V AC. The insulation height is standardized for the series, ensuring compatibility with various board thicknesses.

Headers, Male Pins Feature Summary

• Gold-plated copper alloy contacts ensure low resistance and long-term reliability
• Single-row straight pin header configuration for vertical PCB mounting
• Standard 2.54 mm pitch spacing for broad industry compatibility

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Board-to-board connection interfaces
• Wire-to-board assembly applications

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold plating specification. Confirm the pole count matches the intended nine-position requirement. Ensure the through-hole mounting style aligns with the target PCB layout. Check RoHS compliance status if restricted substances are a concern for the final product.

Headers, Male Pins Selection Notes

Select this model when a nine-contact male header is required with gold-plated terminals. The 2.54 mm pitch allows integration with standard ribbon cables or mating connectors. Consider the 3 A current rating for power distribution needs. Verify that the straight pin orientation fits within the available vertical clearance on the assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts ranging from small configurations to higher-density options. All units in this family share the same 2.54 mm pitch and general mechanical dimensions. The specific variant defines the number of poles and terminal plating type.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with nine positions. Generic 2.54 mm pitch male headers may serve as alternatives if gold plating is not critical. Ensure any replacement maintains the same single-row straight pin configuration and through-hole mounting style.
