SL 11 097 9 S

Headers, Male Pins Overview

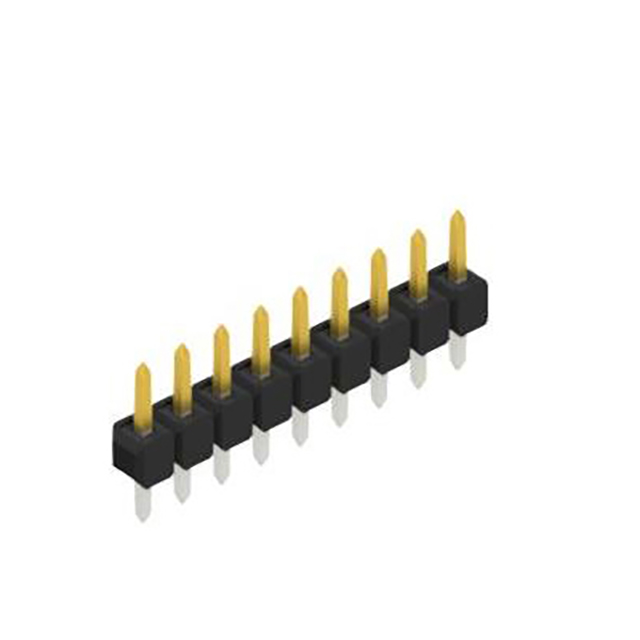

The SL 11 097 9 S is a male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features a single row with 9 contacts and a 2.54 mm (0.100 inch) pitch. The connector utilizes square pins made of copper-tin alloy with tin plating on the mating surface. Technical drawings indicate dimensions of 9.7 mm length, 3 mm width, and 3.9 mm height. It supports operating temperatures from -40°C to +163°C and withstands soldering conditions of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male header configuration for board-to-board or wire-to-board connections
• Through-hole mounting style with square pin contact geometry
• Tin-plated copper-tin alloy contacts ensuring reliable conductivity

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• PCB assembly requiring standard 2.54 mm spacing
• Industrial control modules utilizing through-hole headers

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' corresponds to the tin-plated variant in official datasheets. Confirm that the 9-contact count matches the required circuit design. Ensure compatibility with standard 2.54 mm mating connectors. Check RoHS compliance status if required by project specifications. Validate thermal ratings against intended operating environments.

Headers, Male Pins Selection Notes

Select this component when a single-row, 9-position male header is required. The 2.54 mm pitch ensures compatibility with standard ribbon cables and female headers. Consider the through-hole mounting requirement for mechanical stability. Evaluate the temperature range suitability for the application environment. Verify physical dimensions fit within the available PCB space constraints.

Headers, Male Pins Part Context

The SL 11 series represents Fischer Elektronik's line of precision-engineered male headers. These components are part of a broader family offering various contact counts and configurations. The SL 11 097 9 S specifically addresses needs for compact, low-pin-count interconnections. This series is widely used in consumer electronics and industrial equipment.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series variants with matching 2.54 mm pitch and 9 positions. Ensure replacement parts maintain the same through-hole mounting style and single-row configuration. Verify identical dimensional tolerances for panel cutouts and mating interfaces.
