SL 11 097 9 Z

Headers, Male Pins Overview

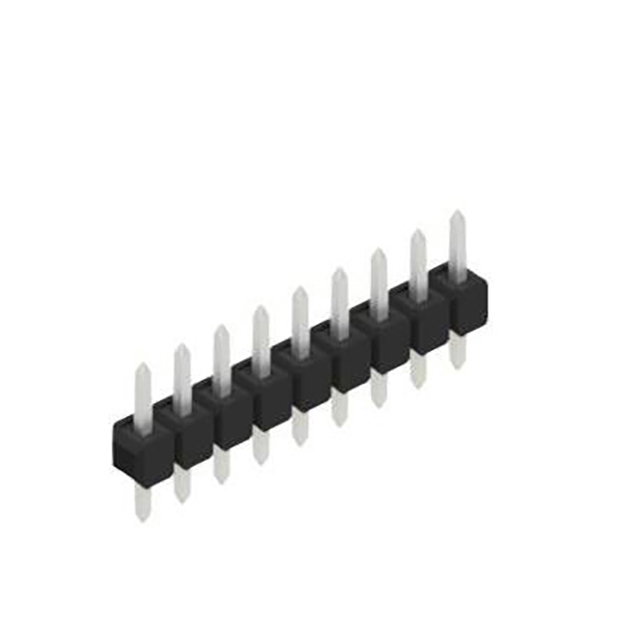

The SL 11 097 9 Z is a male pin header connector from Fischer Elektronik, designed for through-hole mounting on printed circuit boards. It features a single row with nine positions and a standard 2.54 mm (0.100 inch) pitch. The contacts are constructed from copper-tin alloy with a nickel plating base and a minimum gold thickness of 3 µm to ensure reliable conductivity and corrosion resistance. Rated for 3 A current and 250 V AC voltage, the unit utilizes PA 4.6 insulation material compliant with UL 94 V-0 standards.

Headers, Male Pins Feature Summary

• Gold-plated contact surfaces provide enhanced durability and stable electrical performance in demanding environments.
• Through-hole soldering design ensures secure mechanical attachment to PCB substrates.
• High-temperature resistant PA 4.6 insulation supports robust assembly processes.

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics board-to-board linking
• Test and measurement equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix '9' confirms the required gold plating specification rather than standard tin finishes. Confirm that the package quantity matches project requirements as items are typically supplied in bulk reels or tubes. Ensure compatibility with existing PCB footprint dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when high-cycle mating durability and superior oxidation resistance are critical compared to standard tin-plated alternatives. The gold finish offers lower contact resistance stability over extended operational lifespans. Consider the through-hole form factor for applications requiring higher mechanical strength than surface-mount options.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision connectors manufactured by Fischer Elektronik. The series focuses on providing reliable interconnection solutions for electronic assemblies. The specific model variant distinguishes itself through its unique contact surface treatment and position count within the broader product family.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch and nine positions. Verify that alternative suppliers offer comparable gold plating thicknesses to maintain equivalent electrical reliability standards.

Headers, Male Pins FAQ

What is the contact material composition?

The contacts are made from a copper-tin alloy.

Is the connector suitable for high-temperature soldering?

Yes, the PA 4.6 insulation material supports standard through-hole soldering temperatures.
