SL 11 112 1 Z

Headers, Male Pins Overview

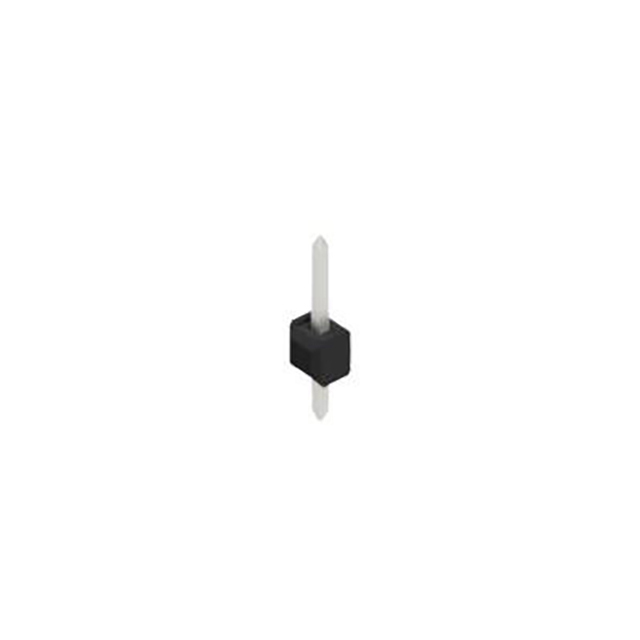

The SL 11 112 1 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch spacing with one contact position. The connector utilizes tin-plated copper-tin contacts and polyamide (PA46) insulation material. Designed for through-hole mounting, it offers a straight orientation suitable for standard PCB applications.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for direct board insertion
• Tin-plated contacts ensure reliable electrical connectivity
• Polyamide insulation provides thermal stability up to 163°C

Headers, Male Pins Applications

• General purpose PCB interconnections
• Prototype development boards
• Low-current signal routing

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and pitch specifications. Ensure compatibility with mating connectors regarding height and alignment. Check for RoHS compliance status if required by project standards. Confirm lead availability directly with authorized distributors.

Headers, Male Pins Selection Notes

Select this component when a single-row, low-count header is required. The 0.635 mm pitch is distinct from standard 2.54 mm headers; verify mating interface compatibility. Consider the operating temperature range of -40°C to +163°C for environmental suitability. Ensure PCB hole dimensions match the pin diameter for proper through-hole assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of male headers from Fischer Elektronik. The series typically offers various contact counts with consistent pitch and housing dimensions. It is designed for surface-mount or through-hole integration depending on the specific variant suffix. The product line emphasizes precision engineering for electronic assemblies.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Verify mechanical fit and electrical ratings before considering alternative manufacturers. Contact Fischer Elektronik for potential cross-reference recommendations.
