SL 11 112 10 G

Headers, Male Pins Overview

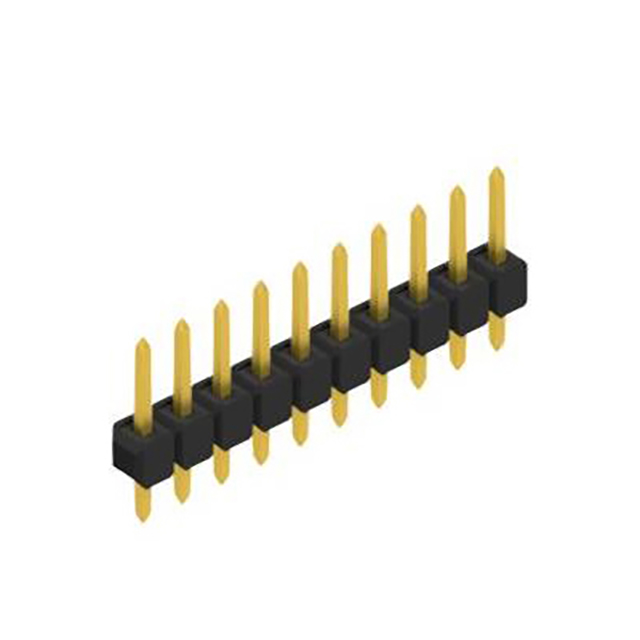

The SL 11 112 10 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row of ten contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole mounting technology for secure PCB attachment. Contact surfaces are gold-plated to ensure reliable electrical performance and corrosion resistance. The housing is constructed from insulating materials suitable for standard electronic assembly processes.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for straightforward circuit board integration
• Gold-plated contact surfaces providing enhanced conductivity and durability
• Through-hole mounting design ensuring mechanical stability on printed circuit boards

Headers, Male Pins Applications

• General-purpose PCB interconnections requiring reliable signal transmission
• Prototype development and testing setups needing robust header connections
• Electronic assemblies utilizing standard 2.54 mm spacing components

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix matches the required contact count and plating type. Confirm that the gold plating specification aligns with application requirements for low-contact resistance. Ensure the through-hole footprint corresponds to the target PCB layout dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required. The 2.54 mm pitch ensures compatibility with standard breadboards and mating connectors. Consider the mechanical height and insulation material properties if thermal or environmental constraints exist within the specific device enclosure.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts while maintaining consistent pitch and mounting characteristics. The 'G' suffix typically denotes gold plating, distinguishing it from tin-plated variants in the same physical form factor family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers within the SL 11 series with identical pitch and row count. Verify that alternative manufacturers provide matching gold plating thickness and through-hole dimensions to ensure interchangeability without PCB redesign.
