SL 11 112 10 S

Headers, Male Pins Overview

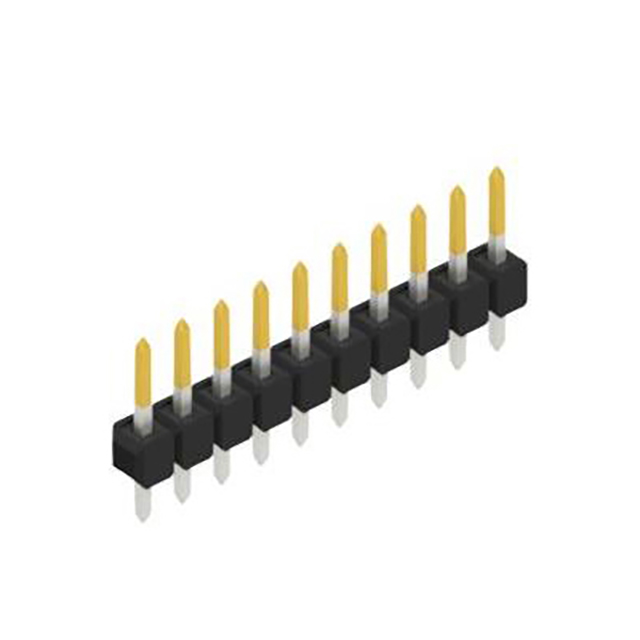

The Fischer Elektronik SL 11 112 10 S is a single-row male pin header designed for through-hole PCB mounting. It features a 2.54 mm pitch and contains 10 contacts. The connector utilizes a PA 4.6 GF insulating body with UL 94 V-0 flammability classification. Contacts are made of CuSn alloy with gold plating, offering a test voltage rating of 2000 V. The operating temperature range spans from -40°C to +163°C, supporting reflow soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male header configuration for board-to-board or wire-to-board connections
• Gold-plated CuSn alloy contacts ensuring reliable conductivity
• High-temperature resistant PA 4.6 GF insulating material

Headers, Male Pins Applications

• Industrial control systems requiring high-temperature stability
• Consumer electronics assemblies with strict safety standards
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' confirms gold plating and PA 4.6 GF insulation as documented in the official datasheet. Ensure the pin count matches the required circuit design. Confirm compatibility with standard 2.54 mm mating connectors. Check that the thermal profile supports the specified 260°C/10s reflow limit without damaging the insulator.

Headers, Male Pins Selection Notes

Select this component when a single-row, 10-position header is needed with gold contact plating for corrosion resistance. The PA 4.6 GF material is suitable for applications exceeding standard nylon temperature limits. Verify that the through-hole footprint aligns with the PCB layout constraints. Consider the 2000 V test voltage rating if isolation requirements are critical for the specific application environment.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of rectangular pin headers. The series offers various pole counts and row configurations. The SL 11 112 10 S specifically denotes a 10-contact variant within the standard 2.54 mm pitch family. It is distinct from SMD variants like the SL 11 SMD series and other plating options such as tin (Z) or selective gold (G).

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 2.54 mm pitch, 10 positions, single-row format, and gold-plated CuSn contacts. Insulation material compatibility and UL 94 V-0 rating must be verified for equivalent performance.
