SL 11 112 10 Z

Headers, Male Pins Overview

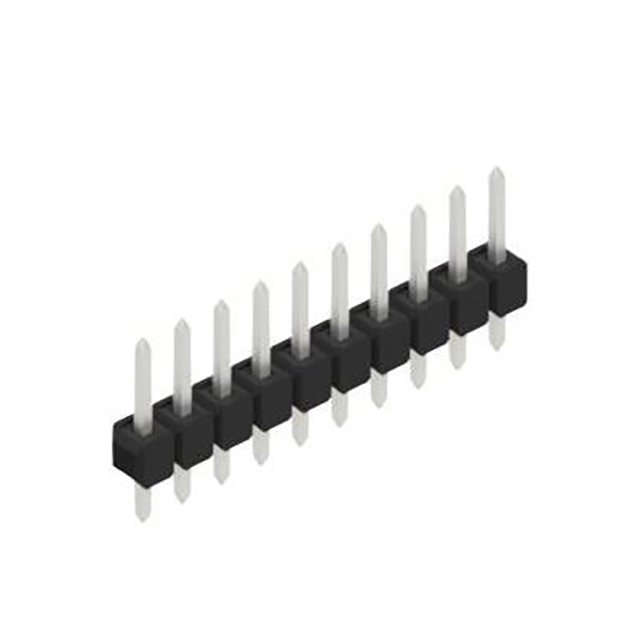

The SL 11 112 10 Z is a male pin header connector from the Fischer Elektronik SL 11 112 series. It features a single row of ten contacts with a 0.635 mm (0.025 inch) pitch and a 2.54 mm (0.100 inch) mating interface spacing. Designed for through-hole mounting, it utilizes tin-plated copper-tin contacts and a polyamide (PA46) insulation body. The component operates within a temperature range of -40°C to 163°C and supports a current rating of 3 A.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Through-hole terminal style ensuring secure PCB attachment
• Tin-plated contact finish providing corrosion resistance
• Polyamide insulation material rated for high-temperature environments

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics assembly
• General-purpose circuit board linking

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 112 10 Z against manufacturer datasheets to confirm contact count and plating type. Ensure compatibility with mating connectors regarding pitch and height specifications. Check for RoHS compliance status if required by project standards.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for through-hole applications. Consider the 3 A current rating and -40°C to 163°C operating range for environmental suitability. Verify that the 0.635 mm pitch aligns with the target PCB footprint and mating interface requirements.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 112 series, which offers various contact counts in a standardized one-row format. The series provides consistent mechanical dimensions across different pole configurations, facilitating modular design approaches in electronic assemblies requiring reliable signal or power transmission.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers from the same SL 11 112 series with identical pitch and mounting style. Cross-brand replacements must match the 0.635 mm pitch, 10-contact count, and through-hole termination method to ensure physical and electrical compatibility.
