SL 11 112 11 G

Headers, Male Pins Overview

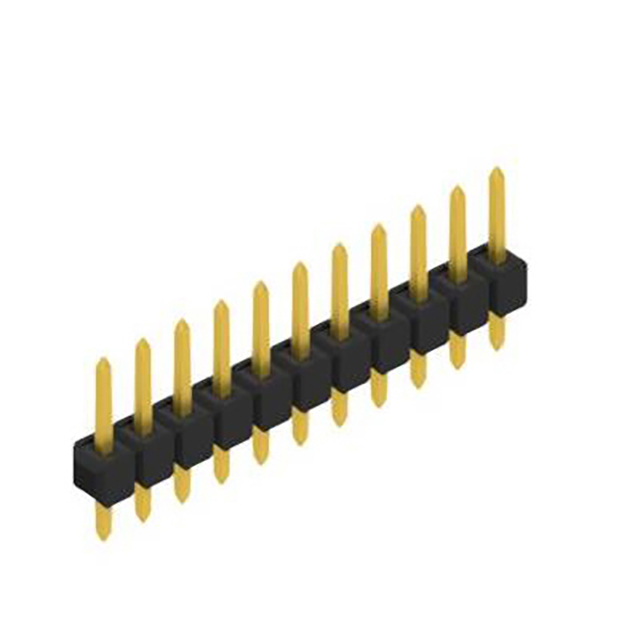

The SL 11 112 11 G is a male pin header manufactured by Fischer Elektronik. It features 11 contacts arranged in a single row with a 2.54 mm pitch spacing. The connector utilizes through-hole straight termination for PCB mounting. Contact materials consist of copper tin, with gold plating on the post surfaces. Insulation is provided by glass-filled polyamide (PA46) nylon. The component supports an operating temperature range from -40°C to +163°C and withstands reflow soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Gold-plated contact posts ensuring reliable signal transmission
• Glass-filled polyamide insulation material for thermal stability
• Through-hole straight termination style for secure PCB integration

Headers, Male Pins Applications

• Industrial control systems requiring stable interconnects
• Consumer electronics assemblies utilizing standard 2.54 mm spacing
• Automotive electronic modules needing high-temperature resistance
• Communication equipment interface boards

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact finish and insulation specifications. Ensure the required number of positions matches the exact model designation. Confirm that the through-hole footprint dimensions align with the target PCB design constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold-plated contacts is required for applications demanding high thermal endurance up to 163°C. The 2.54 mm pitch ensures compatibility with standard ribbon cables and mating connectors. Consider the glass-filled PA46 insulation if mechanical strength and heat resistance are critical factors in the assembly environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of male pin headers from Fischer Elektronik. The series offers various contact counts while maintaining consistent 2.54 mm pitch and structural characteristics. The 'G' suffix typically denotes specific surface finish options within this product line, distinguishing it from other variants like those with tin plating.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 11-position count, 2.54 mm pitch, and single-row male configuration. Verify that alternative components support the same through-hole straight termination and gold-plated contact finishes. Ensure replacement parts meet the -40°C to +163°C operating temperature range and utilize compatible insulation materials for equivalent performance.
