SL 11 112 11 S

Headers, Male Pins Overview

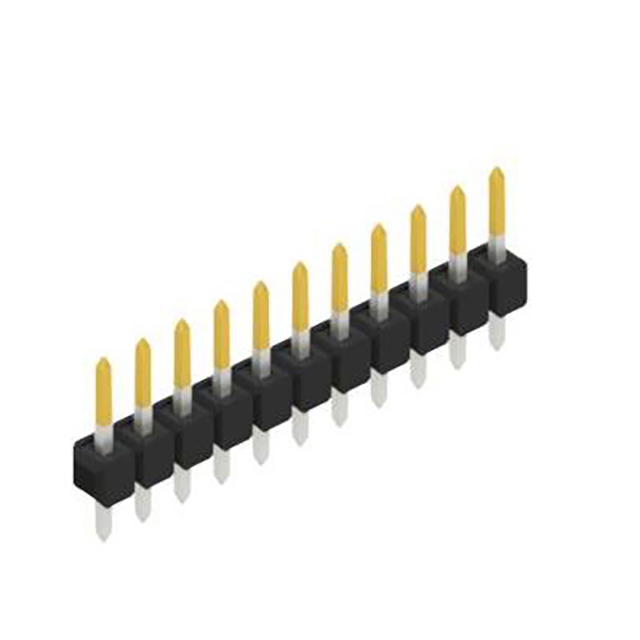

The SL 11 112 11 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains 11 contacts. The connector utilizes square-shaped pins with tin plating on the mating side, providing a contact resistance of ≤5 mΩ. Rated for a maximum current of 3 A and voltage of 250 VAC, it offers an insulation resistance of 1,000,000 MOhm. The component supports through-hole mounting and operates within a temperature range of -40°C to +163°C, withstanding soldering temperatures of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Precision-engineered one-row configuration with 0.635 mm pin cross-section
• Through-hole mounting design for secure PCB integration
• Tin-plated contacts ensuring reliable electrical connectivity
• High insulation resistance and robust thermal stability

Headers, Male Pins Applications

• Industrial control systems requiring high-density interconnects
• Electronic assemblies needing precise signal transmission
• PCB-to-PCB or PCB-to-cable connections in harsh environments

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates tin plating as per official datasheets. Confirm pin count matches project requirements. Ensure compatibility with standard 2.54 mm grid layouts. Check RoHS compliance status if required by regulatory standards. Validate operating temperature ranges against application constraints.

Headers, Male Pins Selection Notes

Select this model for applications demanding high reliability and precision in signal integrity. Consider the 3 A current rating and 250 VAC voltage limit for circuit design. Evaluate the through-hole mounting style against available board space. Assess the thermal endurance for reflow soldering processes. Compare alternative series if different contact materials are needed.

Headers, Male Pins Part Context

The SL 11 112 series represents Fischer Elektronik's line of precision male pin headers. These connectors are designed for industrial electronics, offering consistent performance across various environmental conditions. The 112 designation typically refers to the series geometry, while numerical values indicate pin counts. This specific variant focuses on standard tin-plated contacts for general-purpose use.
