SL 11 112 11 Z

Headers, Male Pins Overview

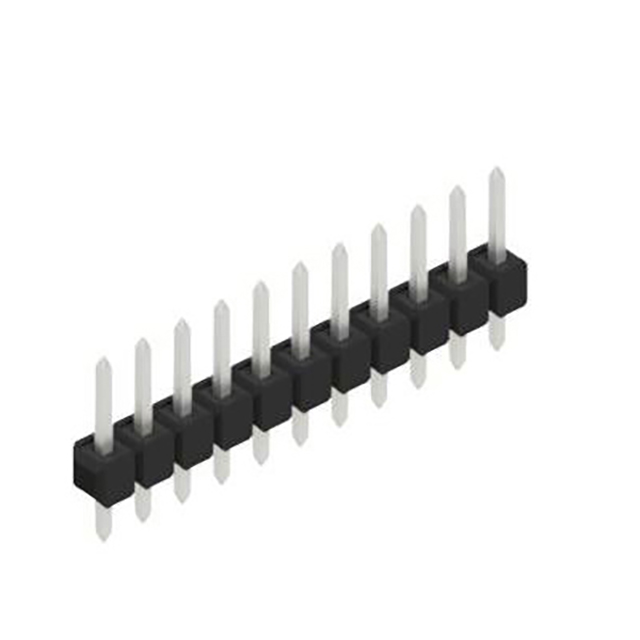

The SL 11 112 11 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 11 positions with a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole mounting and square contact pins made of copper-tin alloy. Contact surfaces are tin-plated, with a specified thickness of 157.5 µin (4.00 µm). The assembly uses polyamide (PA46) insulation, resulting in an overall height of 0.441 inches (11.20 mm) and an insulator height of 0.110 inches (2.80 mm).

Headers, Male Pins Feature Summary

• Single-row configuration for standard board-to-board or wire-to-board interconnections.
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards.
• Square contact pin geometry provides stable mating engagement with corresponding receptacles.

Headers, Male Pins Applications

• General-purpose PCB interconnection systems.
• Industrial control module interfaces.
• Consumer electronics internal wiring harnesses.

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm pin count and series alignment. Ensure compatibility with mating socket specifications regarding contact length and plating requirements. Cross-reference datasheet parameters for thermal and electrical ratings before integration into final designs.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Consider the 11-position count and PA46 insulation material properties. Evaluate the tin-plated contact finish for corrosion resistance and solderability needs within the target operational environment.

Headers, Male Pins Part Context

This component belongs to the SL 11 112 series of male pin headers from Fischer Elektronik. The series offers various position counts while maintaining consistent 2.54 mm spacing and structural dimensions. The 'Z' suffix typically denotes specific plating or packaging variations within the manufacturer's catalog structure.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for alternative part numbers within the SL 11 112 series that match the required pin count. Verify dimensional compatibility and electrical characteristics before substituting with generic equivalents from other manufacturers.
