SL 11 112 12 G

Headers, Male Pins Overview

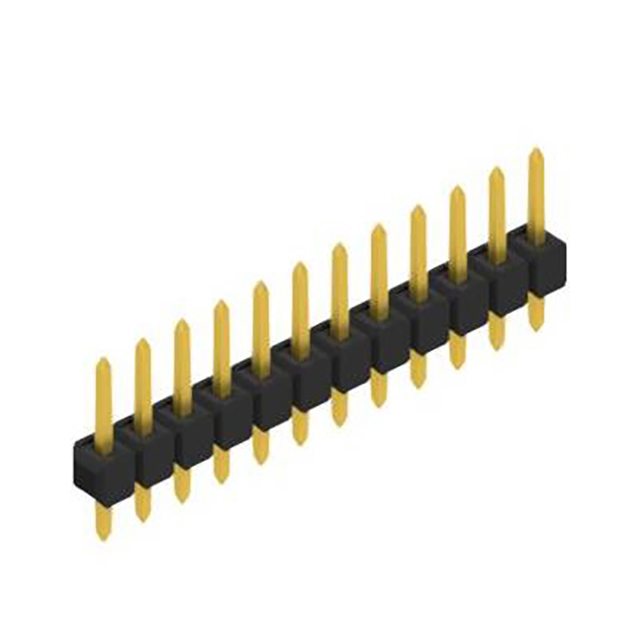

The SL 11 112 12 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 12 positions and a 2.54 mm (0.100 inch) pitch. The contacts are gold-plated for mating surfaces, ensuring reliable conductivity. The connector utilizes a straight through-hole mounting style with black polyamide insulation. Key dimensions include an overall contact length of 11.20 mm and an insulation height of 2.80 mm. The square-shaped contacts provide secure retention within the housing.

Headers, Male Pins Feature Summary

• Gold-plated mating contacts for enhanced corrosion resistance
• Single-row straight configuration for standard PCB assembly
• Polyamide insulation material for thermal stability

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Prototype development boards requiring removable connections
• Industrial control panel wiring harnesses

Headers, Male Pins Procurement Notes

Verify the specific contact finish variant, as Fischer Elektronik offers different plating options such as tin or gold for the SL 11 112 series. Confirm that the 12-position count matches the design requirement, as this series spans various pole counts. Ensure the straight orientation aligns with the board layout constraints before finalizing the order.

Headers, Male Pins Selection Notes

Select this component when a durable, gold-plated male header is required for low-to-medium current applications. The 2.54 mm pitch is standard for breadboard-compatible designs. Consider the operating temperature range of -40°C to +163°C for environmental suitability. Compare against tin-plated variants if cost reduction is prioritized over long-term oxidation resistance.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of PCB headers from Fischer Elektronik. The series is characterized by its modular design, allowing for various contact counts while maintaining consistent mechanical dimensions. It is designed for through-hole technology, providing robust mechanical fixation on printed circuit boards compared to surface-mount alternatives.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik headers in the SL 11 112 series with identical pitch but different contact counts. Generic equivalents with 2.54 mm pitch and gold plating can be considered if mechanical footprint compatibility is verified. Always check insulation material ratings and voltage specifications before cross-referencing.
