SL 11 112 12 Z

Headers, Male Pins Overview

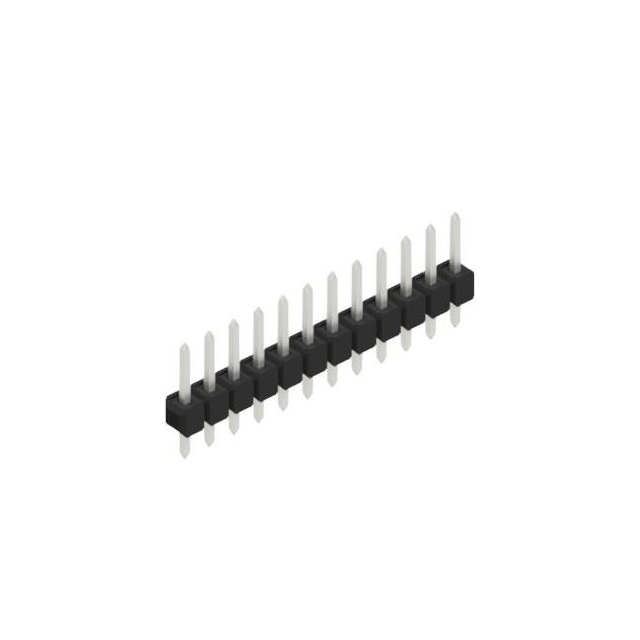

The SL 11 112 12 Z is a male header connector from the Fischer Elektronik SL 11 series. It features a single row with 12 contacts and a 0.635 mm contact cross-section. The pitch is 0.100 inches (2.54 mm). The connector utilizes square-shaped pins with tin plating on both mating and column surfaces, including a 157.5 µin (4.00 µm) thickness. Total contact length is 0.441 inches (11.20 mm), with a mating length of 0.213 inches (5.40 mm) and a column length of 0.118 inches (3.00 mm). Insulation height is 0.110 inches (2.80 mm). The housing is made of polyamide (PA46).

Headers, Male Pins Feature Summary

• Precision-engineered one-row configuration for reliable signal transmission.
• Square pin design ensures secure mechanical retention in mating sockets.
• Tin-plated copper-silver contacts provide corrosion resistance and conductivity.

Headers, Male Pins Applications

• Industrial control panel interconnections
• General-purpose PCB board-to-board connections
• Electronic equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with mating socket dimensions and operating temperature ranges defined in the manufacturer datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 0.635 mm square pins and 2.54 mm pitch is required. Consider the total contact length and insulation material properties for thermal and mechanical stability in the target application environment.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of male headers by Fischer Elektronik. The series offers various contact counts ranging from 1 to 36 positions with consistent 0.635 mm contact cross-sections and 2.54 mm grid spacing, designed for through-hole mounting on printed circuit boards.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include SL 11 112 variants with different contact counts, such as SL 11 112 03G or SL 11 112 07 Z, provided the pin count matches the design requirement. Cross-manufacturer replacements require verification of pin geometry and pitch compatibility.

Headers, Male Pins FAQ

What is the contact material for the SL 11 112 12 Z?

The contacts are made of copper-silver alloy with tin plating.

Does the SL 11 112 12 Z have a double-row configuration?

No, it is a single-row connector.
