SL 11 112 13 G

Headers, Male Pins Overview

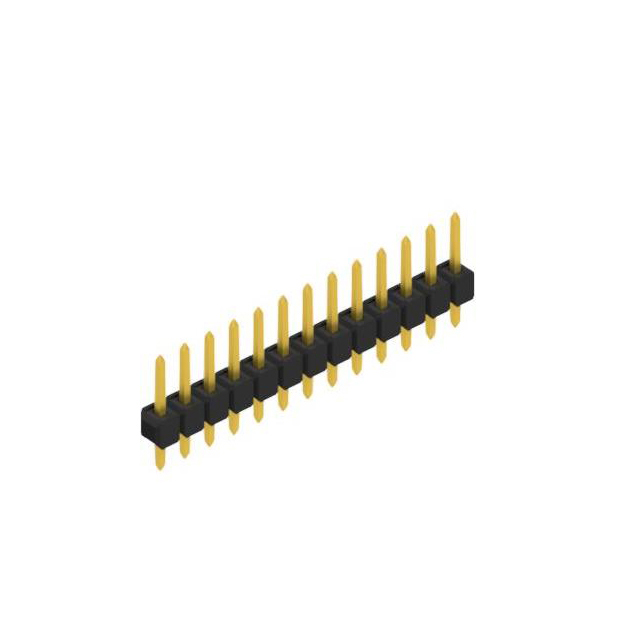

The SL 11 112 13 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 13 contacts and a standard pitch of 2.54 mm (0.100 inches). The component utilizes through-hole termination for secure PCB mounting. Contact materials consist of copper tin, with gold plating on the mating surface to ensure reliable conductivity. The insulation material is polyamide (PA46), glass-filled nylon, providing structural integrity and thermal stability.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board interconnection
• Gold-plated contact surfaces ensuring low volume resistance and corrosion resistance
• Glass-filled polyamide insulation offering high mechanical strength and thermal endurance

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control system signal routing
• Consumer electronics assembly requiring reliable through-hole headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix matches the required contact finish and insulation color. Confirm that the nominal current rating of 3 A aligns with the application's electrical load requirements. Ensure the straight orientation fits the available vertical clearance on the target printed circuit board layout.

Headers, Male Pins Selection Notes

Select this model when a single-row, 13-position male header is required. The 2.54 mm pitch is standard for general electronics. Consider the gold-plated variant if superior contact reliability and lower resistance are critical compared to tin-only options. Verify compatibility with mating socket connectors.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 series of standard male pin headers. The series offers various pole counts and configurations for diverse PCB mounting needs. The SL 11 112 13 G represents a specific count within this standardized family, designed for robust through-hole applications in industrial and commercial equipment.
