SL 11 112 13 S

Headers, Male Pins Overview

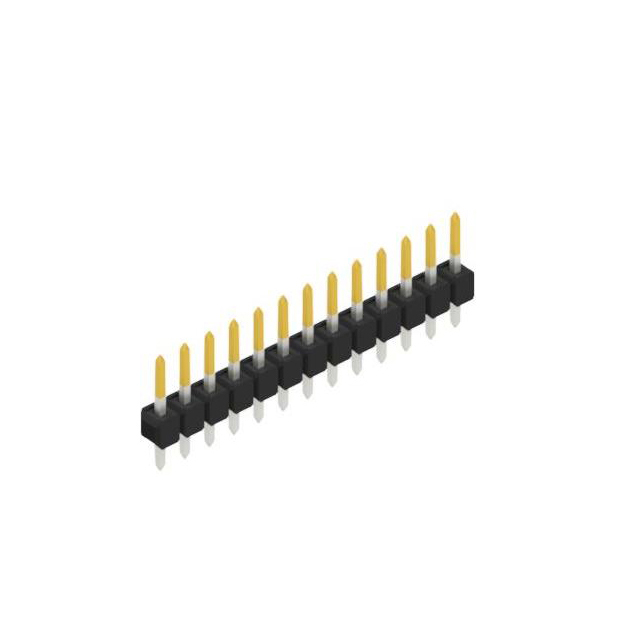

The SL 11 112 13 S is a single-row through-hole pin header manufactured by Fischer Elektronik. It features 13 positions with a 0.100-inch (2.54 mm) pitch and 0.635 mm contact cross-section. The connector utilizes square male pins with tin plating, offering an insertion depth of 3.00 mm and a total contact length of 11.2 mm. Constructed from copper-tin alloy contacts and PA46 insulation, it supports operating temperatures from -40°C to +163°C and withstands soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row board-to-board or wire-to-board interconnection design
• Through-hole mounting configuration for secure PCB attachment
• Square male pin geometry ensuring stable mating engagement

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates tin plating as documented in official datasheets. Confirm that the 13-position count matches the required circuit density. Ensure the through-hole footprint aligns with the PCB layout specifications before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch header is required for low-current applications. The tin-plated contacts provide adequate conductivity without gold plating costs. Verify that the 11.2 mm overall height fits within the enclosure constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik pin headers. The series offers various pole counts while maintaining consistent 2.54 mm pitch and mechanical dimensions. The SL 11 112 13 S represents the 13-position variant within this standardized product line.

Headers, Male Pins Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Cross-referencing requires matching the 2.54 mm pitch, 13 positions, and through-hole mounting style exactly.
