SL 11 112 14 G

Headers, Male Pins Overview

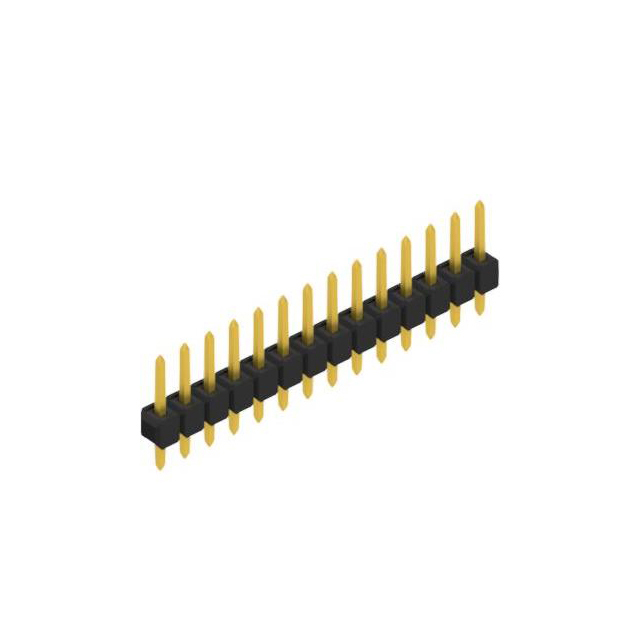

The SL 11 112 14 G is a single-row male pin header manufactured by Fischer Elektronik. It features 14 positions with a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole termination and gold-plated contacts. Insulation is constructed from glass-filled polyamide (PA46). The operating temperature range spans from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard PCB mounting
• Gold contact finish ensures reliable signal transmission
• Glass-filled polyamide insulation provides thermal stability

Headers, Male Pins Applications

• General-purpose PCB interconnections
• Industrial control board assembly
• Consumer electronics module interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' confirms gold plating rather than tin or nickel variants. Confirm the 14-position count matches the design requirement. Ensure the PA46 material rating aligns with the soldering profile. Check datasheet revisions for any changes in mechanical dimensions or thermal limits before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54mm pitch header is required. The gold finish suits applications needing corrosion resistance. The high-temperature rating supports lead-free soldering processes. Verify that the 14-pin count fits the circuit layout constraints. Consider the black color coding if visual identification is necessary for assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of Fischer Elektronik headers. The series offers various pin counts and contact finishes. The SL 11 112 designation indicates a straight, single-row male header. Variations exist with different suffixes indicating plating types. This specific model represents a mid-range pin count option within the product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers with identical 14-pin, 2.54mm pitch specifications. Ensure replacement parts maintain the same gold contact finish and PA46 insulation. Verify mechanical compatibility with mating sockets. Cross-reference part numbers like SL 11 112 14 S only if tin plating is acceptable.
