SL 11 112 14 S

Headers, Male Pins Overview

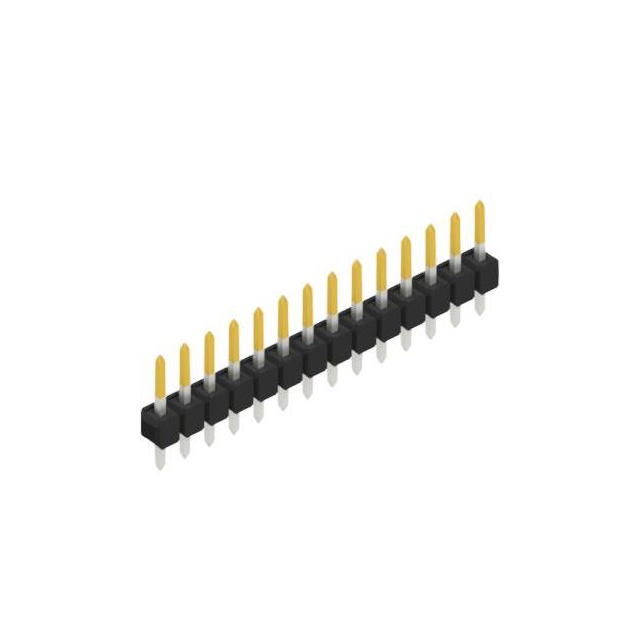

The SL 11 112 14 S is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 14 contacts designed for through-hole mounting. The connector utilizes copper-tin contact material with a tin plating finish. Insulation is provided by polyamide (PA46), also known as Nylon 4/6, which is glass-filled for enhanced stability. The component operates within a temperature range of -40°C to +163°C and supports soldering at 260°C for 10 seconds. Rated voltage is 250 V with a current capacity of 3 A.

Headers, Male Pins Feature Summary

• Single-row configuration with straight through-hole termination
• Glass-filled polyamide insulation for thermal stability
• Tin-plated copper-tin contacts ensuring reliable conductivity

Headers, Male Pins Applications

• General PCB interconnection systems
• Industrial electronic assemblies requiring high thermal resistance
• Board-to-board or wire-to-board connections in controlled environments

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer datasheet to confirm tin plating specifications. Ensure the order quantity matches the required pin count of 14. Confirm that the operating temperature range of -40°C to +163°C aligns with the application's thermal profile. Check RoHS compliance status if required by project standards.

Headers, Male Pins Selection Notes

Select this model when a single-row, 2.54 mm pitch header is needed for through-hole applications. The glass-filled PA46 insulation makes it suitable for environments exceeding standard nylon temperature limits. Consider the 3 A current rating and 250 V voltage limit during circuit design. Compare with other series variants if different contact finishes or row configurations are required.

Headers, Male Pins Part Context

This component belongs to the SL 11 112 series of precision-engineered electronic connectors from Fischer Elektronik. The series is characterized by its robust construction and suitability for industrial applications. The specific model denotes a 14-position variant within this standardized lineup of male pin headers.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik models within the SL 11 112 series with identical pitch and row count but different pin counts, such as SL 11 112 14 G. Cross-brand replacements must match the 2.54 mm pitch, through-hole termination, and PA46 insulation material properties.
