SL 11 112 15 G

Headers, Male Pins Overview

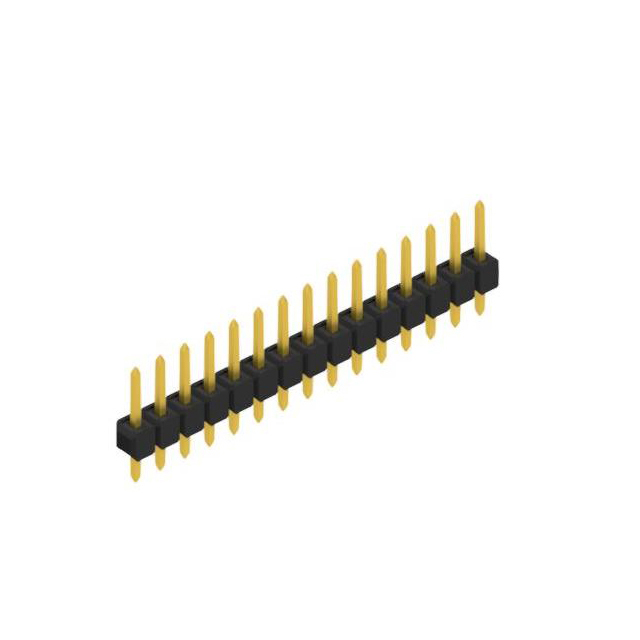

The SL 11 112 15 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row of 15 contacts with a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole termination for secure PCB mounting. Contact materials consist of copper alloy with tin plating to ensure reliable electrical conductivity and corrosion resistance. The insulating body is constructed from polyamide (PA46), providing thermal stability and mechanical strength. This component is designed for board-to-board or wire-to-board interconnections in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard interconnection needs
• Through-hole termination ensures robust mechanical fixation on printed circuit boards
• Polyamide insulation offers high thermal resistance and durability
• Tin-plated copper contacts provide consistent electrical performance

Headers, Male Pins Applications

• General-purpose electronic device assembly
• Industrial control panel wiring
• Consumer electronics internal connections
• Communication equipment interface modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating thickness and material composition. Ensure the required number of positions matches the exact model designation. Check for any RoHS compliance declarations if environmental regulations apply to your production process. Confirm that the straight orientation aligns with your PCB layout requirements before placing orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 15-position male header is required for through-hole mounting. The 2.54 mm pitch is standard for many legacy and modern designs. Consider the operating temperature range and voltage ratings specified in the official documentation to ensure compatibility with your system's electrical environment. Evaluate space constraints on the PCB to accommodate the connector height and footprint.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of male pin headers from Fischer Elektronik. The series offers various position counts while maintaining consistent pitch and termination styles. These connectors are widely used in industrial and commercial electronics where reliable signal transmission is critical. The product line emphasizes precision engineering and durable materials for long-term performance in demanding applications.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 15-position count, 2.54 mm pitch, single-row male configuration, and through-hole termination. Verify that alternative manufacturers offer compatible contact materials and insulation properties. Cross-reference dimensions such as overall height and row spacing to ensure physical fit within the existing design constraints without modification.
