SL 11 112 15 S

Headers, Male Pins Overview

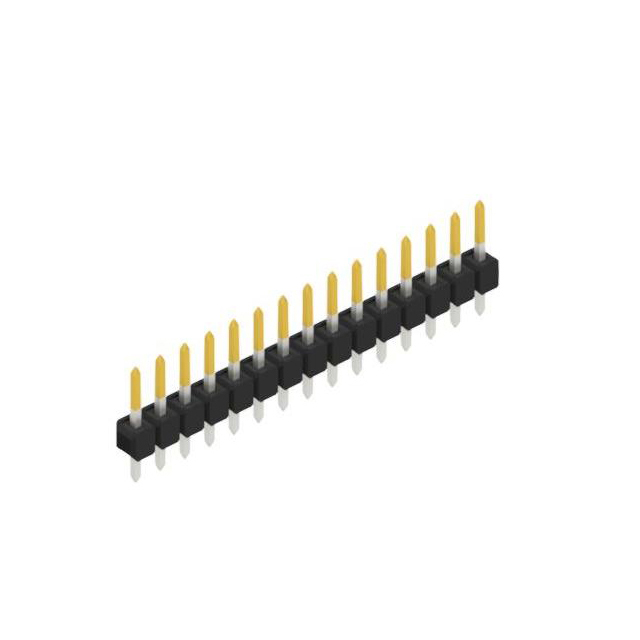

The SL 11 112 15 S is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains 15 positions. The connector utilizes through-hole termination for PCB mounting. Contact materials consist of copper alloy with tin plating. The insulating housing is made of polyamide (PA46). The component supports a soldering temperature of 260°C for 10 seconds and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row configuration with square contact shape
• Through-hole mounting for secure PCB attachment
• Tin-plated contacts for corrosion resistance
• Polyamide insulation material for thermal stability

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control system board-to-board connections
• Consumer electronics assembly
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's official documentation to confirm exact plating thickness and material specifications. Ensure compatibility with mating female connectors regarding pitch and contact geometry. Confirm that the through-hole footprint matches the target PCB design requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 15-position male header is required for through-hole applications. The 2.54 mm pitch ensures compatibility with standard breadboard and prototyping systems. Consider the operating temperature range and tin plating suitability for the intended environmental conditions and mating cycle requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of precision-engineered electronic components from Fischer Elektronik. The series offers various contact counts while maintaining consistent pitch and mechanical dimensions. These headers are designed for reliable electrical connections in industrial and commercial electronic assemblies requiring robust through-hole mounting solutions.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers from the SL 11 112 series with matching 15-position configurations. Verify that alternative parts maintain the same 2.54 mm pitch, through-hole termination method, and compatible contact plating specifications to ensure functional interchangeability.
