SL 11 112 15 Z

Headers, Male Pins Overview

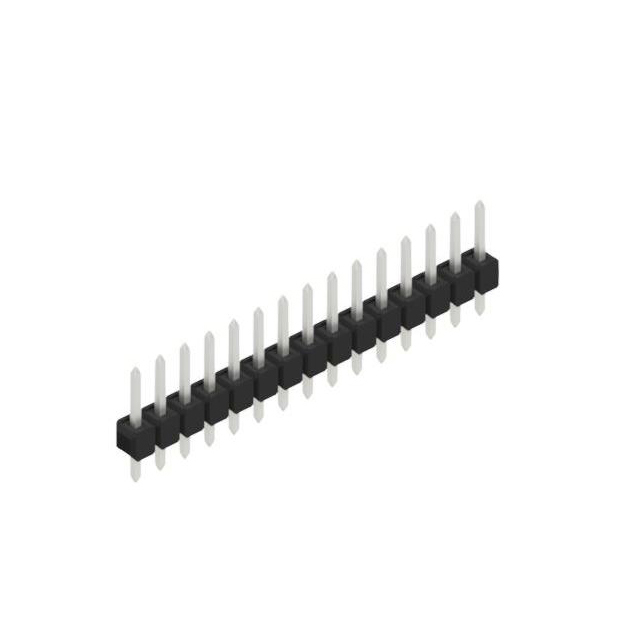

The SL 11 112 15 Z is a male header connector from Fischer Elektronik, designed for through-hole mounting on printed circuit boards. It features a single row with 15 contacts and a pitch of 0.635 mm (2.54 mm). The contacts are made of copper-tin alloy with tin plating, providing a mating contact length of 5.40 mm and a column contact length of 3.00 mm. The total contact length is 11.20 mm, with an insulation height of 2.80 mm. The connector utilizes PA46 nylon insulation and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Precision-engineered one-row male header configuration
• Through-hole mounting for secure PCB integration
• Tin-plated copper-tin contacts for reliable conductivity
• PA46 nylon insulation material for thermal stability

Headers, Male Pins Applications

• Industrial electronic equipment interconnects
• Control panel signal routing
• General-purpose board-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 112 15 Z against official Fischer Elektronik documentation to confirm pin count and pitch specifications. Ensure compatibility with mating female connectors regarding contact dimensions and plating thickness. Check RoHS compliance status if required by project standards. Confirm lead-free soldering process compatibility with the specified thermal limits.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 0.635 mm pitch is required for through-hole applications. Consider the 15-contact configuration for specific channel needs. Evaluate the operating temperature range and insulation material properties against environmental conditions. Compare contact surface treatment requirements with mating components to ensure optimal electrical performance and durability.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of male headers from Fischer Elektronik, characterized by precision engineering and standard spacing. The series offers various contact counts and configurations for diverse electronic assembly needs. These connectors are designed for robust industrial applications requiring reliable signal transmission and mechanical stability in compact spaces.

Headers, Male Pins Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Verify cross-compatibility with other Fischer Elektronik SL series headers or generic 2.54 mm pitch male headers based on mechanical dimensions and electrical ratings before substitution.
