SL 11 112 16 G

Headers, Male Pins Overview

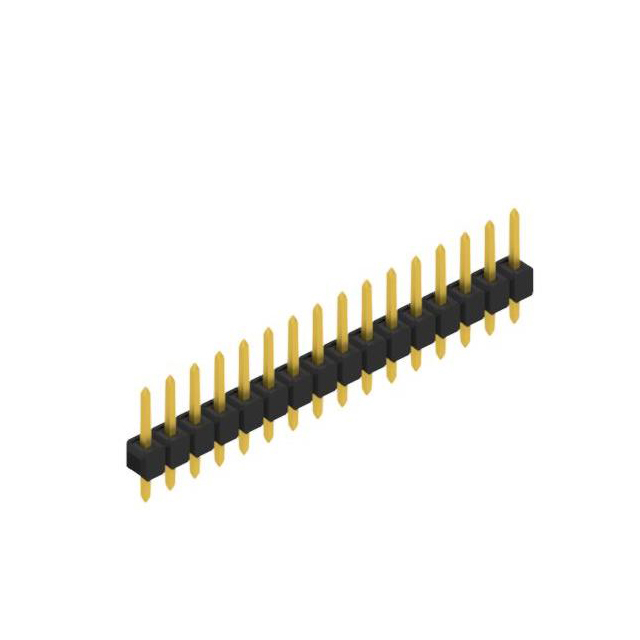

The SL 11 112 16 G is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and accommodates 16 positions. The connector utilizes gold-plated copper tin contacts with a polyamide insulation material rated for glass-filled PA46/Nylon 4/6. Electrical specifications include a maximum current rating of 3 A and a voltage rating of 250 VAC, with an insulation resistance of 1,000,000 MOhm. The operating temperature range extends from -40°C upwards.

Headers, Male Pins Feature Summary

• Single-row male pin configuration designed for through-hole PCB mounting
• Gold-plated contact finish ensures reliable signal transmission and corrosion resistance
• Glass-filled polyamide insulation provides structural stability and thermal endurance

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Signal routing in consumer electronics assemblies
• Industrial control panel wiring interfaces

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the required 16-position configuration before integration. Confirm that the gold plating specification aligns with your environmental durability requirements. Ensure the through-hole mounting style is compatible with your PCB fabrication capabilities and soldering processes. Cross-reference the insulation material properties against your operational temperature constraints to guarantee long-term reliability under stress conditions.

Headers, Male Pins Selection Notes

Choose this component when a compact, high-density single-row interface is necessary. The 0.635 mm pitch allows for tighter spacing compared to standard 2.54 mm headers. Select this variant if gold contact plating is mandatory for low-resistance performance. Consider the 3 A current rating to ensure it meets the load requirements of your specific circuit design without overheating or degradation over time.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts and row configurations. The SL 11 112 16 G specifically denotes a 16-position variant within this standardized lineup. It shares common mechanical dimensions and mounting characteristics with other parts in the same family, facilitating modular design approaches across different product lines.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 0.635 mm pitch, 16-pin count, and single-row male format. Verify compatibility of the gold contact plating and polyamide insulation material. Check that the replacement part meets the same 3 A current and 250 VAC voltage ratings. Ensure the through-hole terminal style and overall height dimensions fit the existing PCB footprint without modification.
