SL 11 112 16 S

Headers, Male Pins Overview

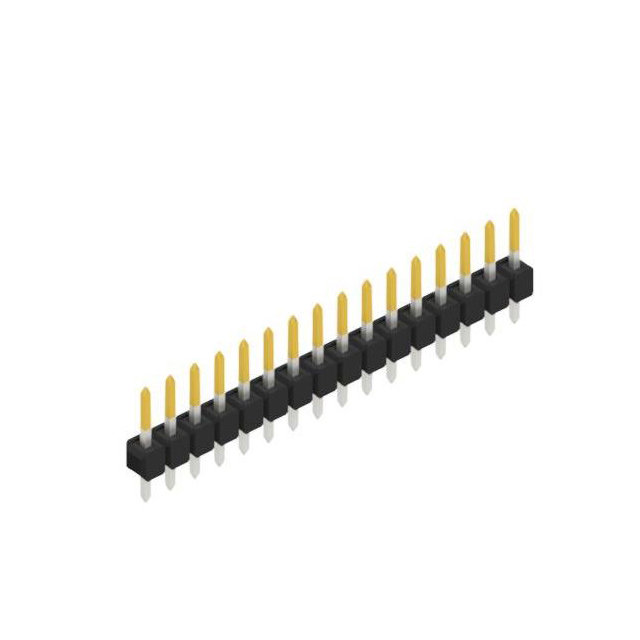

The SL 11 112 16 S is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 16 positions and a 0.100 inch (2.54 mm) pitch. The component utilizes square contact pins made of copper-tin alloy, plated with tin on the mating surface. Designed for through-hole mounting, it offers an insulation height of 0.110 inches (2.80 mm) and a total contact length of 0.441 inches (11.20 mm).

Headers, Male Pins Feature Summary

• Single-row configuration with square-shaped male pins for secure board-to-board or wire-to-board connections.
• Through-hole mounting style ensuring stable mechanical attachment to printed circuit boards.
• Tin-plated contacts provide reliable electrical conductivity and corrosion resistance.
• Polyamide (PA46) insulation material supports operation within specified thermal limits.

Headers, Male Pins Applications

• Industrial control systems requiring robust signal transmission.
• Consumer electronics assemblies utilizing standard 2.54 mm spacing.
• Test and measurement equipment interfaces.
• General-purpose electronic modules needing reliable interconnects.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's datasheet to confirm exact plating thickness and material specifications. Ensure the required current rating aligns with application demands, as headers typically support up to 3 A at 250 VAC. Confirm that the through-hole footprint matches the target PCB design before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 16-position male header is required for 2.54 mm pitch applications. Consider the operating temperature range of -40°C to +163°C for environmental suitability. Evaluate the need for reflow solderability if automated assembly processes are utilized, noting the maximum peak temperature tolerance.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic components from Fischer Elektronik. The series is designed for stringent industrial standards, offering various pin counts and configurations. The SL 11 112 variant specifically denotes the body dimensions and contact arrangement within this standardized product line.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 16-position count, 2.54 mm pitch, and single-row male pin format. Verify compatibility regarding insulation material, contact plating, and mounting style. Cross-reference with Fischer Elektronik's official replacement guide for equivalent parts in the SL 11 family.
