SL 11 112 16 Z

Headers, Male Pins Overview

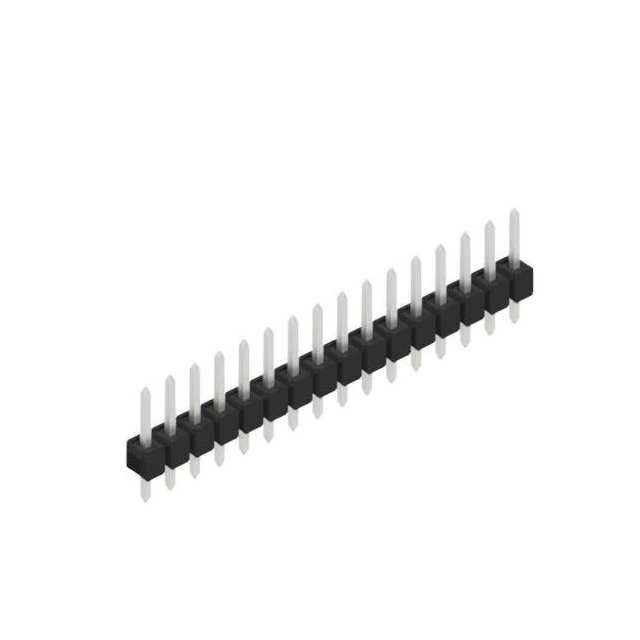

The SL 11 112 16 Z is a male pin header manufactured by Fischer Elektronik. It features a single row with 16 contacts and a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole mounting for straight PCB installation. Contact materials are copper alloy with tin plating, providing a contact length of 0.213 inches (5.40 mm) for mating and 0.118 inches (3.00 mm) for the post. The total contact length measures 0.441 inches (11.20 mm). Insulation is made from polyamide (PA46), offering an insulation height of 0.110 inches (2.80 mm).

Headers, Male Pins Feature Summary

• One-row male header configuration with square contact cross-section.
• Through-hole straight mounting design for board-to-board or wire-to-board connections.
• Tin-plated copper alloy contacts ensure reliable electrical performance.

Headers, Male Pins Applications

• Industrial control systems
• General electronic equipment interconnects
• Consumer appliance circuit boards

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm pin count and pitch compatibility. Ensure that the tin plating thickness and insulation material specifications meet the target application's environmental requirements. Cross-reference datasheet parameters for mechanical fit before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 16-position male header with 2.54 mm spacing is required. Consider the through-hole straight form factor for standard PCB layouts. Evaluate the thermal and current ratings against system demands, ensuring the PA46 insulation and tin contacts suit the operating environment.

Headers, Male Pins Part Context

The SL 11 series represents Fischer Elektronik's line of precision-engineered male headers. These connectors are designed for robust industrial applications requiring reliable signal transmission. The SL 11 112 16 Z variant specifically offers a compact one-row solution with standardized 2.54 mm grid spacing for widespread compatibility.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for direct equivalents within the SL 11 family with differing pin counts. Verify mechanical dimensions and electrical ratings before substituting with generic industry-standard headers to ensure interface compatibility.
