SL 11 112 17 S

Headers, Male Pins Overview

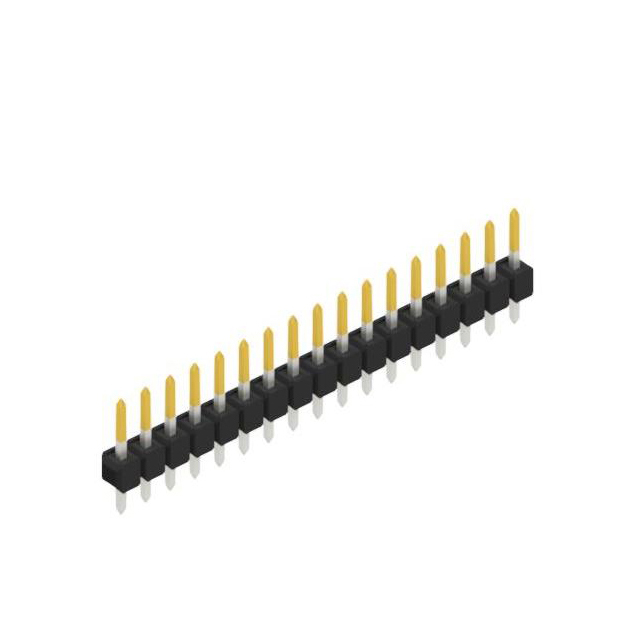

The SL 11 112 17 S is a single-row pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 17 contacts. The component utilizes through-hole mounting technology for secure PCB attachment. The housing is constructed from insulating material with specific thermal and flammability ratings. Contacts are made of copper alloy with tin plating to ensure reliable electrical conductivity and corrosion resistance.

Headers, Male Pins Feature Summary

• Single-row configuration designed for board-to-board or wire-to-board interconnections
• Through-hole termination method ensures mechanical stability on printed circuit boards
• Tin-plated copper alloy contacts provide durable conductive pathways
• Polyamide insulation body offers structural integrity and thermal resistance

Headers, Male Pins Applications

• Industrial control system signal routing
• Consumer electronics assembly connections
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the exact suffix 'S' against manufacturer datasheets to confirm plating specifications and material composition. Ensure compatibility with mating socket dimensions and PCB hole patterns. Cross-reference RoHS compliance status if required for your specific manufacturing environment. Confirm lead-free requirements align with current regulatory standards in your target market.

Headers, Male Pins Selection Notes

Select this component when a single-row, 17-position connection is required with standard 2.54 mm spacing. Consider the through-hole profile for mechanical strength needs. Evaluate the tin-plated contact finish against environmental exposure conditions. Compare physical height constraints against available board space. Verify mating partner availability within the same series family.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of precision-engineered electronic components. The series is characterized by consistent 2.54 mm pitch designs suitable for various industrial applications. Fischer Elektronik produces these connectors to meet stringent quality standards for reliability in demanding environments. The specific model variant defines the contact count and termination style.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users must verify dimensional and electrical compatibility before substituting with generic equivalents. Contact the manufacturer directly for approved alternative listings.
