SL 11 112 17 Z

Headers, Male Pins Overview

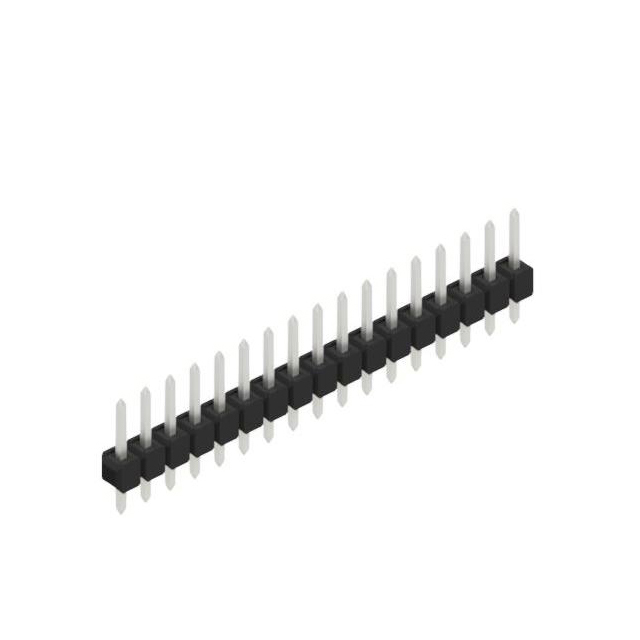

The SL 11 112 17 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 17 contacts with a 0.100 inch (2.54 mm) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes copper-tin contact material with tin plating on both the post and mating surfaces. The insulation is constructed from polyamide (PA46), also known as Nylon 4/6, providing structural integrity and electrical isolation. The component operates within a temperature range of -40°C to +163°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or wire-to-board interconnection
• Through-hole straight termination style ensuring secure PCB attachment
• Tin-plated copper-tin contacts offering reliable conductivity and corrosion resistance
• Polyamide insulation material rated for high-temperature soldering processes

Headers, Male Pins Applications

• General purpose electronic assemblies requiring standard 2.54 mm spacing
• Industrial control panels and instrumentation interfaces
• Consumer electronics manufacturing and prototyping
• Automotive internal wiring connections

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm exact pin count and dimensional tolerances. Ensure compatibility with mating socket connectors regarding contact geometry and plating thickness. Confirm that the through-hole footprint matches the target PCB design guidelines. Check for RoHS compliance status if required by project specifications. Validate operating temperature limits against the environmental conditions of the final application.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 17 positions is required for through-hole assembly. The 2.54 mm pitch is suitable for general-purpose applications where standard spacing is preferred. Consider the tin plating for cost-effective solutions without gold plating requirements. The PA46 insulation supports reflow soldering temperatures up to specified limits. Evaluate mechanical stability needs as this is a straight, non-angled connector design.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of Fischer Elektronik headers. The series offers various pin counts and configurations for different connectivity needs. Components in this line are characterized by their robust construction and standardized dimensions. The SL 11 112 designation indicates a specific row and contact arrangement within the broader product family. This series is widely used in industrial and commercial electronic equipment.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 17-pin count, 2.54 mm pitch, and single-row male configuration. Verify that alternative manufacturers offer compatible tin-plated contacts and similar insulation materials. Ensure the replacement part supports the same through-hole mounting orientation and thermal ratings. Cross-reference dimensions to guarantee fit within existing PCB footprints and housing constraints.
