SL 11 112 18 G

Headers, Male Pins Overview

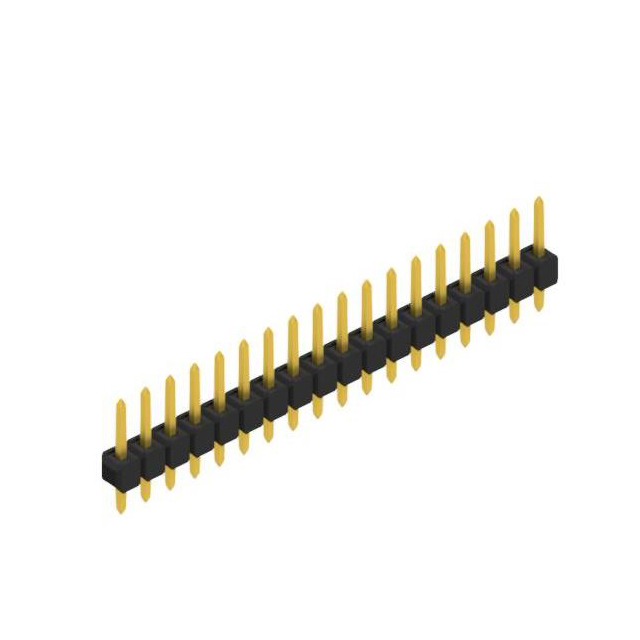

The SL 11 112 18 G is a male pin header connector from the Fischer Elektronik SL 11 112 series. It features a single row of 18 contacts with a 2.54 mm pitch spacing. The connector utilizes through-hole mounting for secure PCB attachment. Contact material is specified as bronze, and the contact finish is tin. It is rated for 3 A current and 250 V voltage. The operating temperature range extends from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single row male pin header configuration for board-to-board or wire-to-board connections
• Through-hole mounting technology ensures stable mechanical fixation on printed circuit boards
• Tin-plated bronze contacts provide reliable electrical conductivity and corrosion resistance

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system signal routing
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific contact material designation in the official datasheet, as some sources list bronze while others may imply copper alloys for similar series variants. Confirm that the tin finish meets the required solderability standards for your manufacturing process. Ensure the 2.54 mm pitch aligns with your PCB footprint design. Check thermal ratings against peak operating temperatures during reflow soldering.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 18 positions is required. The 2.54 mm pitch is standard for many legacy and general-purpose designs. Verify that the 3 A current rating suffices for the intended application. Consider the -40°C to +163°C operating range for environmental compatibility. Compare against alternative series if higher current capacity or different contact materials are needed.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of Fischer Elektronik pin headers. The series offers various contact counts and configurations. These connectors are designed for robust mechanical and electrical performance in standard industrial and commercial applications. The SL 11 112 line emphasizes reliability through standardized dimensions and proven contact technologies.

Headers, Male Pins Replacement Considerations

SL 11 112 18 S is an alternative designation within the same product family offering identical mechanical specifications.
