SL 11 112 18 S

Headers, Male Pins Overview

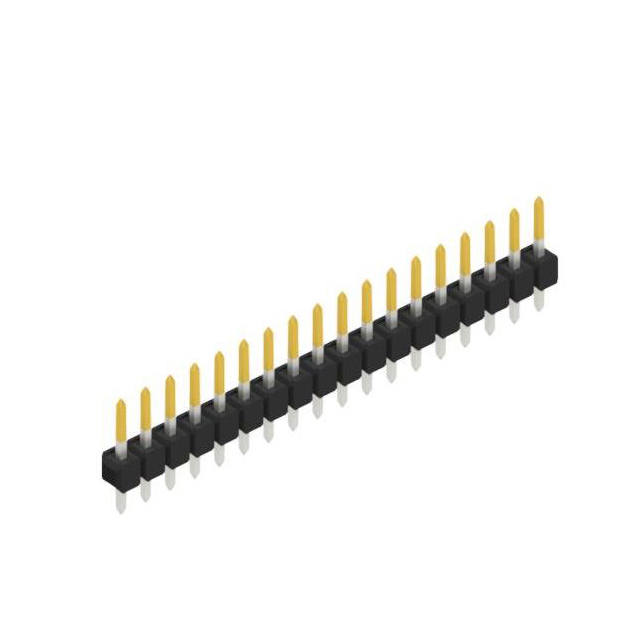

The Fischer Elektronik SL 11 112 18 S is a single-row male pin header connector designed for through-hole mounting. It features 18 positions with a 0.100-inch (2.54 mm) pitch. The contacts are constructed from copper-tin alloy and finished with tin plating, providing a contact thickness of 157.5 µin (4.00 µm). The connector utilizes polyamide insulation material and operates within a temperature range of -40°C to 163°C. Key dimensions include an overall contact length of 0.441 inches (11.20 mm), a mating contact length of 0.213 inches (5.40 mm), and a post contact length of 0.118 inches (3.00 mm).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or wire-to-board interconnections.
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards.
• Tin-plated copper-tin contacts provide reliable conductivity and corrosion resistance.
• Polyamide insulation supports operation in high-temperature environments up to 163°C.

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates tin plating on both post and mating surfaces as per official datasheets. Confirm that the 18-position count matches the required circuit density. Ensure the through-hole footprint aligns with the PCB design guidelines provided by Fischer Elektronik. Cross-reference the operating temperature range against environmental requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. The 18-contact capacity suits moderate-density connections. Consider the tin finish for general-purpose use rather than gold-plated variants. Verify that the straight pin orientation fits the available vertical clearance on the assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of pin strips manufactured by Fischer Elektronik. The series offers various contact counts while maintaining a consistent 2.54 mm pitch and 0.635 mm pin cross-section. These connectors are standardized for rectangular male pin applications requiring robust through-hole performance.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include SL 11 112 18 G, which differs primarily in contact plating specifications. Verify compatibility if substituting with other manufacturers' headers by matching the 2.54 mm pitch, 18-position count, and through-hole termination style.

Headers, Male Pins FAQ

What is the contact material used in the SL 11 112 18 S?

The contacts are made from a copper-tin alloy.

Does this connector support surface mount technology?

No, the SL 11 112 18 S is designed specifically for through-hole mounting.
