SL 11 112 18 Z

Headers, Male Pins Overview

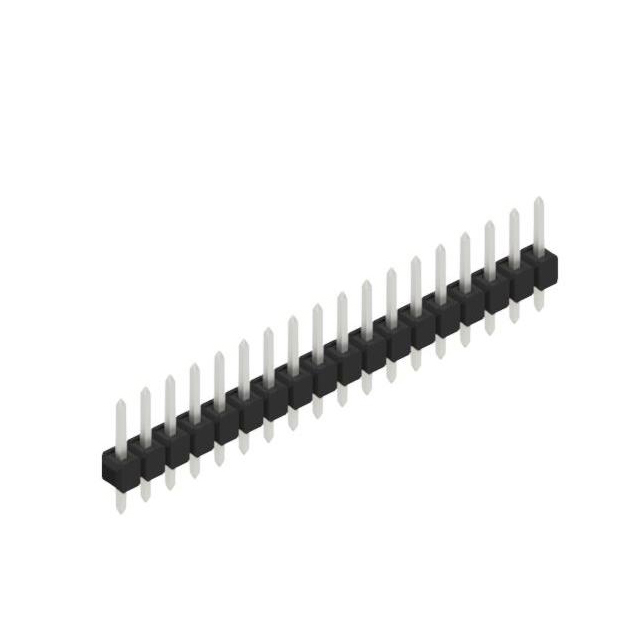

The SL 11 112 18 Z is a single-row pin header connector manufactured by Fischer Elektronik. It features 18 positions with a 0.100" (2.54mm) terminal pitch. Designed for through-hole mounting, the connector utilizes tin-plated copper-tin contacts and polyamide insulation rated UL94 V-0. It supports a maximum current of 3A and voltage ratings up to 250VAC, operating within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Tin-plated contact finish ensuring reliable conductivity
• Polyamide insulation material providing thermal stability

Headers, Male Pins Applications

• Industrial control systems
• General electronic equipment interconnects
• Automotive circuit connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer datasheet to confirm contact plating thickness and material composition. Ensure the selected variant matches the required current rating and temperature tolerance for the target application environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a straight, single-row male header is required for 2.54mm pitch applications. Confirm that the 18-position count aligns with the circuit design. Verify compatibility with mating sockets from the same series to ensure proper engagement and mechanical fit.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of rectangular connectors. The series offers various position counts and termination styles. This specific model represents a standard through-hole option within the product line, designed for general-purpose connectivity in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers with identical 2.54mm pitch and 18 positions. Ensure replacement parts match the straight body orientation and through-hole termination style to maintain board layout integrity.
