SL 11 112 19 G

Headers, Male Pins Overview

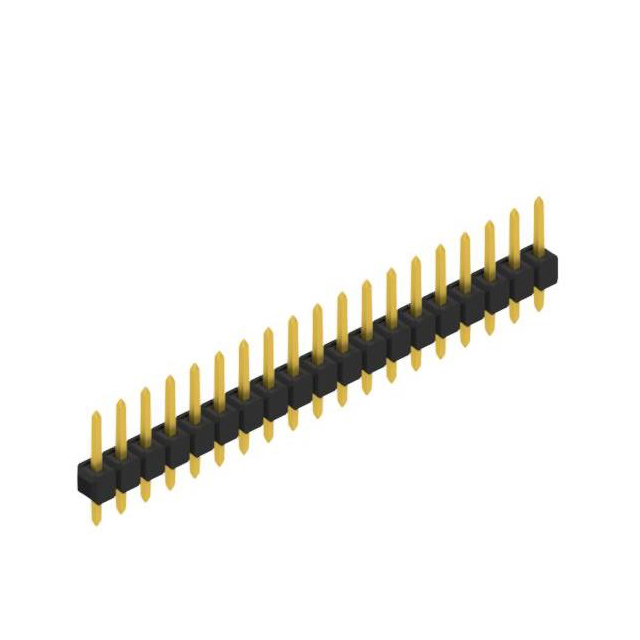

The SL 11 112 19 G is a single-row male pin header manufactured by Fischer Elektronik. It features 19 contacts with a 2.54 mm pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes copper-tin contact material and gold plating on the post interface to ensure reliable signal transmission. Insulation is provided by glass-filled polyamide (PA46), offering thermal stability and mechanical strength. This component supports standard surface entry configurations for board-to-board or wire-to-board interconnections.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for straightforward PCB integration
• Gold-plated contact posts enhance corrosion resistance and conductivity
• Glass-filled polyamide insulation ensures high thermal performance
• Through-hole soldering method provides secure mechanical attachment

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring reliable interconnects
• Industrial control systems utilizing standard pin headers
• Consumer electronics manufacturing processes
• Prototype development and testing environments

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Fischer Elektronik datasheet to confirm contact finish and insulation material specifications. Ensure the selected variant matches the required row count and contact quantity for your design. Cross-reference the manufacturer part number with authorized distributors to guarantee authenticity and traceability of the components.

Headers, Male Pins Selection Notes

Select this header when a single-row, 2.54 mm pitch male connector is required for through-hole applications. Consider the gold post finish for improved contact reliability in demanding environments. Evaluate the thermal rating of the PA46 insulation against your operating conditions. Confirm that the 19-contact length fits within your available PCB space constraints.

Headers, Male Pins Part Context

This component belongs to the SL 11 112 series of unshrouded male headers from Fischer Elektronik. The series offers various contact counts while maintaining consistent 2.54 mm spacing. These connectors are widely used in industrial and commercial electronics for their robust construction and standardized dimensions, facilitating easy replacement and compatibility with mating sockets.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, single-row layout, and 19-pin count. Verify that alternative manufacturers offer compatible gold post finishes and PA46 insulation materials. Ensure the mechanical height and solder tail dimensions align with your existing PCB footprint requirements to maintain assembly integrity.
