SL 11 112 19 S

Headers, Male Pins Overview

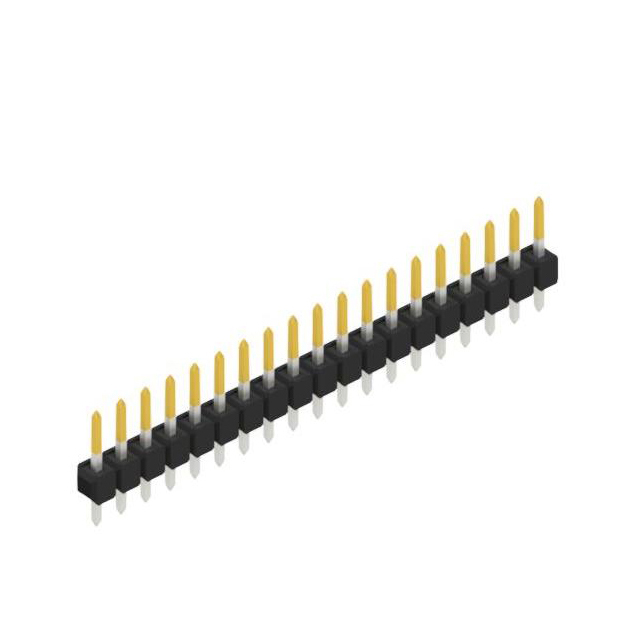

The SL 11 112 19 S is a one-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) contact pitch and contains 19 positions. The connector utilizes square pins with a 0.635 mm cross-section, designed for through-hole mounting on printed circuit boards. The terminal contacts are gold-plated to ensure reliable electrical performance. This component belongs to the SL 11 112 series, which is engineered for board-to-board or wire-to-board interconnection applications requiring high precision and durability.

Headers, Male Pins Feature Summary

• One-row male pin header configuration
• Gold-plated terminal contacts for corrosion resistance
• Square pin design for secure mating
• Through-hole soldering termination

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General purpose electronic assemblies
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates gold plating as per Fischer Elektronik documentation. Confirm the pin count matches the '19' designation in the model number. Ensure the through-hole footprint aligns with your PCB layout requirements. Check for RoHS compliance status if required for your region. Cross-reference the datasheet for mechanical dimensions before integration.

Headers, Male Pins Selection Notes

Select this component when a single row of gold-plated male pins is required. The 2.54 mm pitch is standard for many electronic interfaces. Consider the 0.635 mm pin thickness for robustness. Evaluate the operating temperature range specified in the datasheet. Ensure the housing material meets your environmental needs.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series from Fischer Elektronik. The series offers various pin counts and plating options. The 'SL' prefix denotes the product line. The '112' indicates the specific series design. The final digits specify the pin count and plating type. This modular approach allows for flexible system design.

Headers, Male Pins Replacement Considerations

Fischer Elektronik lists alternatives such as the SL 11 112 2 Z for different plating options. Verify compatibility with mating connectors. Check mechanical dimensions for direct substitution. Ensure electrical ratings meet application requirements. Consult official distributor data for exact equivalents.
