SL 11 112 19 Z

Headers, Male Pins Overview

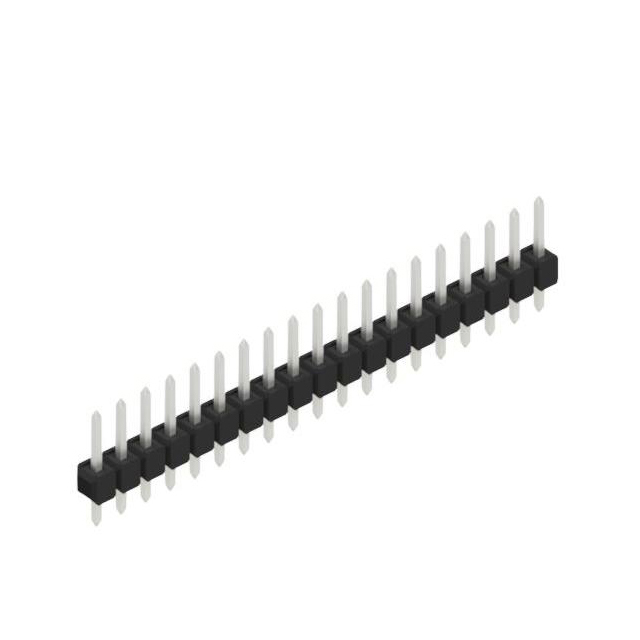

The SL 11 112 19 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 19 positions with a 0.635 mm (0.025 inch) contact pitch and a 2.54 mm (0.100 inch) mating interface spacing. The connector utilizes square-shaped contacts made of copper-tin alloy, finished with tin plating on both the post and mating surfaces. Key dimensions include an overall contact length of 0.441 inches (11.20 mm), a post contact length of 0.118 inches (3.00 mm), and a mating contact length of 0.213 inches (5.40 mm). The insulation height is 0.110 inches (2.80 mm). Constructed from polyamide (PA46) nylon, this through-hole component is designed for reliable board-to-board or cable connections.

Headers, Male Pins Feature Summary

• Precision-engineered single-row configuration with 0.635 mm pitch for high-density applications
• Square-shaped copper-tin contacts ensure stable mechanical retention and electrical conductivity
• Polyamide (PA46) insulation material provides structural integrity and thermal resistance
• Through-hole mounting technique secures the connector firmly to the printed circuit board

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Test and measurement equipment interfaces
• General-purpose electronic assemblies needing reliable signal transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the required number of poles matches the '19' designation in the part number. Cross-reference the insulation material grade and flammability rating with project requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 0.635 mm pitch is required. The 19-position count suits moderate-density connections. Consider the through-hole installation method and PA46 insulation properties for environmental compatibility. Verify that the mating device accepts the 2.54 mm spacing interface.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of pin headers from Fischer Elektronik. The series offers various pole counts while maintaining consistent pitch and dimensional standards. These connectors are designed for general-purpose PCB mounting, providing a standardized solution for interconnecting electronic modules within larger assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the SL 11 112 series include models with identical pitch but different pole counts, such as SL 11 112 13 Z or SL 11 112 20 Z. Ensure any replacement maintains the same 0.635 mm pitch and through-hole mounting characteristics.
