SL 11 112 2 S

Headers, Male Pins Overview

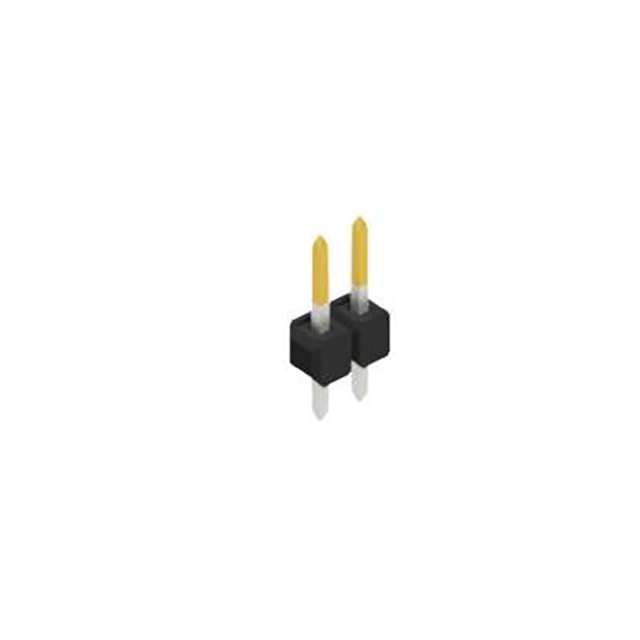

The SL 11 112 2 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains two contacts designed for through-hole mounting on printed circuit boards. The connector utilizes tin-plated copper alloy terminals with a contact length of 5.40 mm for mating and 3.00 mm for the column section. The housing is constructed from polyamide (PA46), providing an insulation height of 2.80 mm. This component is rated for operating temperatures ranging from -40°C to +163°C and can withstand reflow soldering conditions at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row configuration with straight through-hole termination
• Tin-plated copper alloy contacts for reliable conductivity
• Polyamide (PA46) insulation material for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly requiring 2.54 mm spacing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's current datasheet to confirm terminal plating and material specifications. Ensure the required contact count matches the '2' designation in the model number. Confirm that the through-hole straight form factor aligns with the PCB layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header with a standard 2.54 mm pitch is required. The PA46 insulation offers suitable thermal resistance for standard surface mount processes. Consider the total contact length of 11.2 mm to ensure adequate engagement depth with the mating connector or wire harness interface.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of precision-engineered electronic components. The series is characterized by its one-row design and consistent 2.54 mm pitch. Fischer Elektronik produces this line to meet stringent industrial standards for rectangular connectors, offering various contact counts and termination styles within the same dimensional family.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. When evaluating alternatives, match the 2.54 mm pitch, 2-position count, and through-hole straight termination style. Verify that any replacement component supports the same -40°C to +163°C operating temperature range and compatible soldering profiles.
