SL 11 112 20 G

Headers, Male Pins Overview

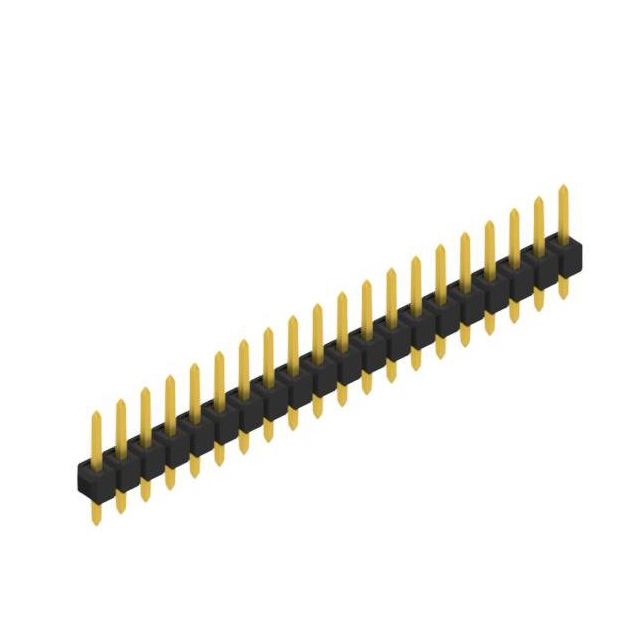

The SL 11 112 20 G is a single-row male pin header manufactured by Fischer Elektronik. It features 20 contacts with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes gold-plated copper-tin contacts and polyamide insulation material. Key dimensions include an insertion depth of 3.00 mm and a total contact length of 11.20 mm. The component supports a rated voltage of 2000 V and a current capacity of 3 A, ensuring reliable electrical connectivity in various electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row configuration with straight through-hole termination for secure PCB mounting
• Gold-plated contacts provide corrosion resistance and stable signal transmission
• Polyamide insulation ensures high dielectric strength and thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections requiring high voltage isolation
• Wire-to-board connections in industrial control systems
• General-purpose electronic assembly headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and insulation material specifications. Ensure the selected variant matches the required current rating and voltage withstand capabilities for the target application environment. Cross-reference the manufacturer datasheet for precise mechanical tolerances and soldering profile recommendations to guarantee joint integrity.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required. Consider the 20-position count and through-hole mounting style for compatibility with existing board layouts. Evaluate the gold contact finish for applications demanding long-term reliability and low contact resistance under high voltage conditions up to 2000 V.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik pin headers. The series offers various pole counts and configurations for standard PCB interconnection needs. The SL 11 112 20 G specifically provides a 20-contact solution within this standardized family, maintaining consistent mechanical and electrical characteristics across the product line.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik headers from the same SL 11 series with identical pitch and row count. Verify that alternative parts match the 2.54 mm spacing, through-hole termination, and 20-position layout. Ensure equivalent voltage and current ratings are maintained for safe operation.
