SL 11 112 20 Z

Headers, Male Pins Overview

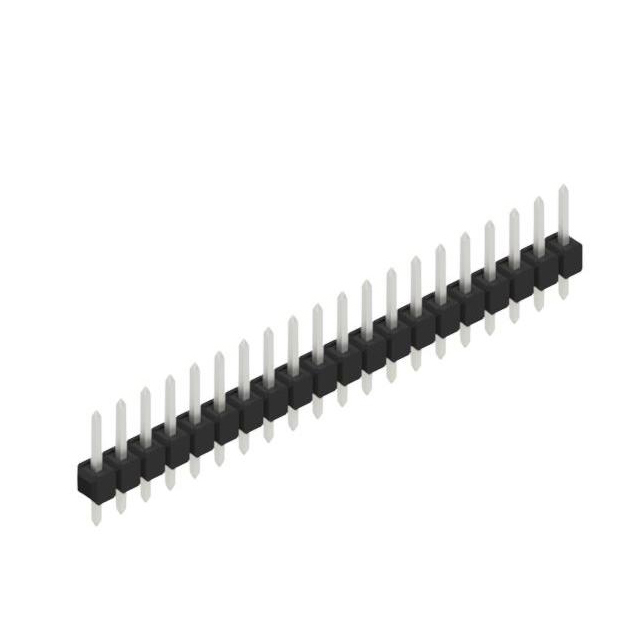

The SL 11 112 20 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 20-position configuration with a 0.100-inch (2.54 mm) pitch, designed for through-hole mounting on printed circuit boards. The contacts are constructed from copper-tin alloy and feature tin plating with a thickness of 157.5 µin (4.00 µm). Key dimensional specifications include an overall contact length of 0.441 inches (11.20 mm), a mating contact length of 0.213 inches (5.40 mm), and a post contact length of 0.118 inches (3.00 mm). The insulator height is 0.110 inches (2.80 mm), utilizing polyamide (PA46) material.

Headers, Male Pins Feature Summary

• Precision-engineered one-row male pin header configuration for reliable board-to-board or wire-to-board connections
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards
• Tin-plated copper-tin alloy contacts provide corrosion resistance and stable electrical conductivity
• Polyamide (PA46) insulation offers thermal stability and structural integrity in industrial environments

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Consumer electronics assembly involving standard 2.54 mm spacing
• Test and measurement equipment interfaces
• General-purpose PCB signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm exact plating thickness and material composition. Ensure compatibility with standard 2.54 mm mating connectors. Confirm that the through-hole footprint matches the target PCB design requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 20-position male header is required for through-hole applications. The 2.54 mm pitch is standard for many electronic assemblies. Consider the PA46 insulation material for applications requiring moderate thermal resistance. Verify that the 3 A current rating and 250 VAC voltage rating meet the system's electrical requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of precision pin headers from Fischer Elektronik. The series is characterized by its straight body orientation and standardized 2.54 mm spacing. Variants within the series differ primarily in the number of positions and terminal plating options, catering to diverse connectivity needs in electronic manufacturing.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers within the SL 11 112 series with identical 20-position counts and 2.54 mm pitch. Ensure any replacement maintains the same through-hole termination style and square contact shape for mechanical fit.
