SL 11 112 24 G

Headers, Male Pins Overview

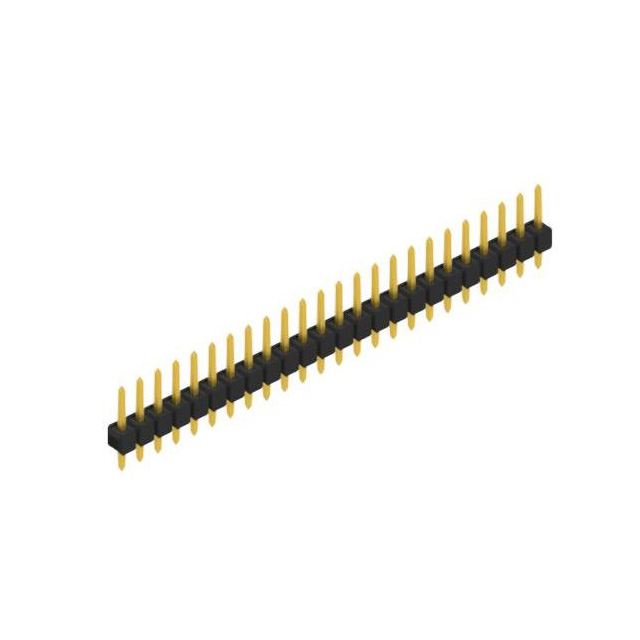

The SL 11 112 24 G is a male pin header manufactured by Fischer Elektronik. It features a single row of 24 contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole termination and square contact shapes. Key dimensions include an overall contact length of 11.20 mm, a contact length for mating of 5.40 mm, and an insulation height of 2.80 mm. The contacts are made from copper-tin alloy with tin plating.

Headers, Male Pins Feature Summary

• Single-row male pin configuration designed for board-to-board or wire-to-board connections
• Through-hole mounting style ensures secure attachment to printed circuit boards
• Square contact shape provides stable mechanical engagement during mating cycles

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring reliable signal transmission
• Industrial control systems utilizing standard 2.54 mm spacing
• Consumer electronics manufacturing processes

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm active status and exact dimensional tolerances. Ensure that the required current rating and voltage specifications align with your application's electrical demands before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 24 positions is required. The 2.54 mm pitch is standard for many interconnect applications. Consider the straight orientation and through-hole technology compatibility with your PCB layout and assembly methods.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of headers from Fischer Elektronik. The series offers various contact counts and configurations. This specific model represents a mid-range option within the single-row male pin category, balancing density and accessibility for standard electronic designs.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik catalogs for direct substitutes with identical pitch and row count. Verify that any alternative maintains the same insulation height and contact material specifications to ensure mechanical and electrical compatibility.
