SL 11 112 24 S

Headers, Male Pins Overview

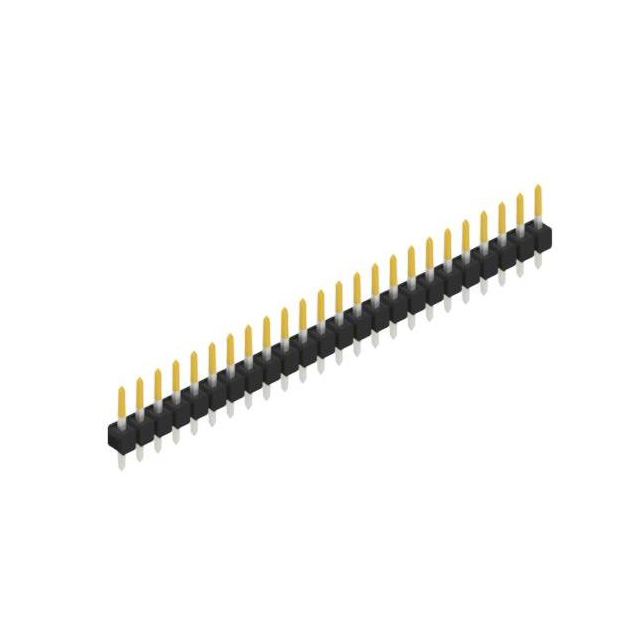

The SL 11 112 24 S is a single-row male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features 24 contacts with a 2.54 mm pitch and square pin shape. The insulating body is constructed from PA 4.6 GF material, rated UL 94 V-0. Electrical specifications include a nominal voltage of 250 V AC, test voltage of 2000 V, nominal current of 3 A, and volume resistance ≤5 mΩ. Operating temperature range is -40°C to +163°C, with soldering tolerance at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male header configuration with square pins for secure board insertion
• High thermal stability with PA 4.6 GF insulation and UL 94 V-0 flammability rating
• Robust electrical isolation supporting 2000 V test voltage and 250 V nominal operation

Headers, Male Pins Applications

• Industrial control panel interconnections
• Test and measurement equipment signal routing
• General-purpose board-to-board or cable-to-board connections requiring high thermal resistance

Headers, Male Pins Procurement Notes

Verify the specific contact plating variant (e.g., Sn or Au) against the full datasheet, as suffixes like 'S' may denote tin plating while others differ. Confirm RoHS compliance status and lead-free requirements for your assembly process. Ensure the through-hole footprint matches your PCB design guidelines before ordering.

Headers, Male Pins Selection Notes

Select this component when a single-row, 24-position male header is required with high thermal endurance. The 2.54 mm pitch ensures compatibility with standard ribbon cables and IDC connectors. Consider the 3 A current rating and 2000 V dielectric strength for safety-critical industrial applications where reliable insulation is paramount.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of Fischer Elektronik PCB headers. The series offers various contact counts and plating options. The 'S' suffix typically indicates tin-plated contacts in this family, distinguishing it from gold-plated variants. It is a standard straight male header for through-hole technology.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Generic equivalents with 2.54 mm pitch, 24 positions, and single-row male configuration may be considered if electrical ratings and thermal specs match. Verify mechanical dimensions and plating compatibility before substitution.
