SL 11 112 24 Z

Headers, Male Pins Overview

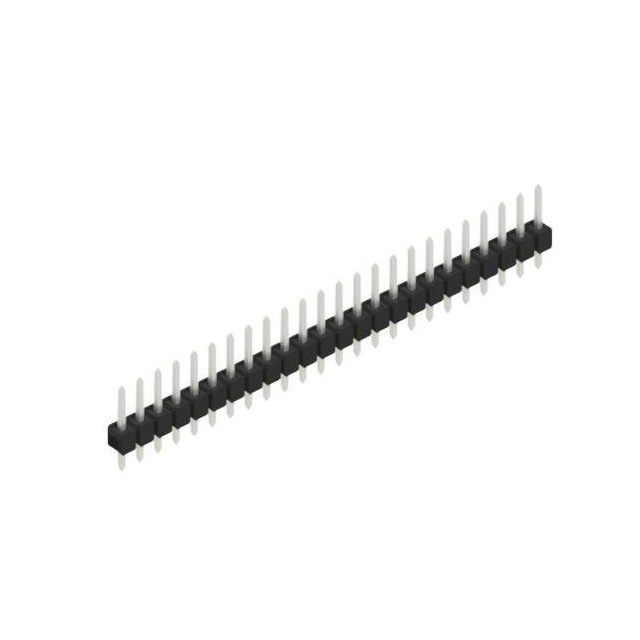

The Fischer Elektronik SL 11 112 24 Z is a single-row male header connector designed for through-hole mounting. It features 24 contacts with a 0.635 mm (0.025 inch) pitch and a 2.54 mm (0.100 inch) mating interface spacing. The connector utilizes tin-plated copper-silver contacts and a polyamide insulation body, rated for 3 A current at -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board interconnection
• Through-hole soldering termination for secure PCB attachment
• Tin-plated contact surfaces ensuring reliable conductivity

Headers, Male Pins Applications

• General purpose electronic circuit board interconnections
• Industrial control system signal routing
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with mating connectors regarding pitch and row alignment. Check for RoHS compliance status if required by project regulations.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 24 positions is required. Consider the 0.635 mm pitch for high-density applications and the 3 A current rating for moderate power signals. Verify thermal resistance requirements against the specified operating temperature range.

Headers, Male Pins Part Context

This component belongs to the SL 11 112 series of Fischer Elektronik headers. The series offers various contact counts and configurations, maintaining consistent dimensional standards for interchangeability within the product line while allowing for specific pin count customization.

Headers, Male Pins Replacement Considerations

No public substitute part numbers are confirmed in available documentation. Cross-referencing requires matching pitch, row count, and terminal style.
