SL 11 112 27 G

Headers, Male Pins Overview

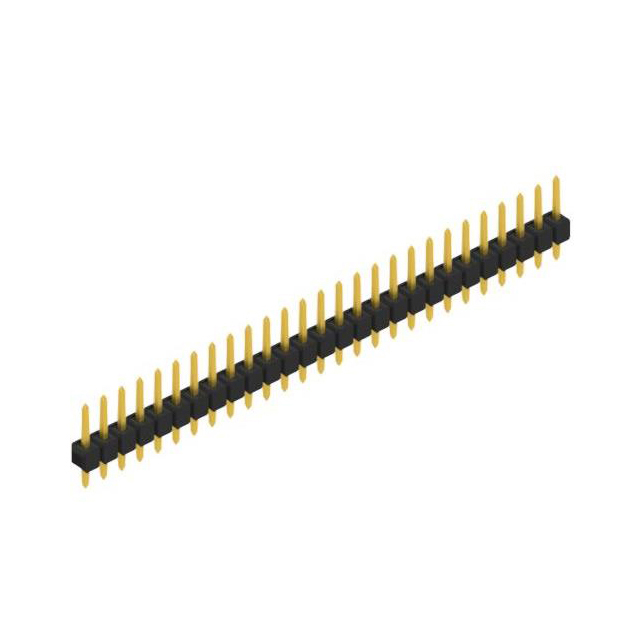

The SL 11 112 27 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row of 27 contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole termination for secure PCB mounting. Contact materials consist of copper alloy with tin plating to ensure reliable electrical conductivity and corrosion resistance. The housing is constructed from polyamide (PA46), providing thermal stability and mechanical strength. This component is designed for standard vertical orientation, facilitating straightforward integration into electronic assemblies requiring robust signal or power transmission.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for direct board insertion
• Polyamide insulation housing offering high thermal endurance
• Tin-plated copper alloy contacts for dependable conductivity
• Through-hole soldering method for permanent mechanical fixation

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics assembly boards
• General-purpose signal routing in embedded systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating thickness and material composition. Ensure the required contact count matches the exact model number. Confirm that the operating temperature range aligns with the application environment. Check for any RoHS compliance documentation if required by your supply chain standards. Validate the physical dimensions against your PCB footprint requirements before finalizing the order.

Headers, Male Pins Selection Notes

Select this component when a single-row, 27-position male header is required for through-hole applications. The 2.54 mm pitch is standard for general-purpose connectors. Consider the thermal rating of the PA46 housing for soldering processes. Ensure the current carrying capacity meets the circuit requirements. Verify that the straight orientation fits within the available vertical space on the assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of male headers from Fischer Elektronik. The series offers various contact counts while maintaining consistent pitch and housing dimensions. These connectors are widely used in industrial and commercial electronics. The SL 11 112 designation indicates the specific series characteristics. Variations exist primarily in the number of positions and optional plating finishes.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 27 positions, single row, and through-hole format. Verify that alternative manufacturers provide identical housing height and contact length specifications. Ensure the replacement uses compatible contact materials and plating. Cross-reference the mechanical drawing to confirm footprint compatibility. Check voltage and current ratings of potential alternatives.
