SL 11 112 27 S

Headers, Male Pins Overview

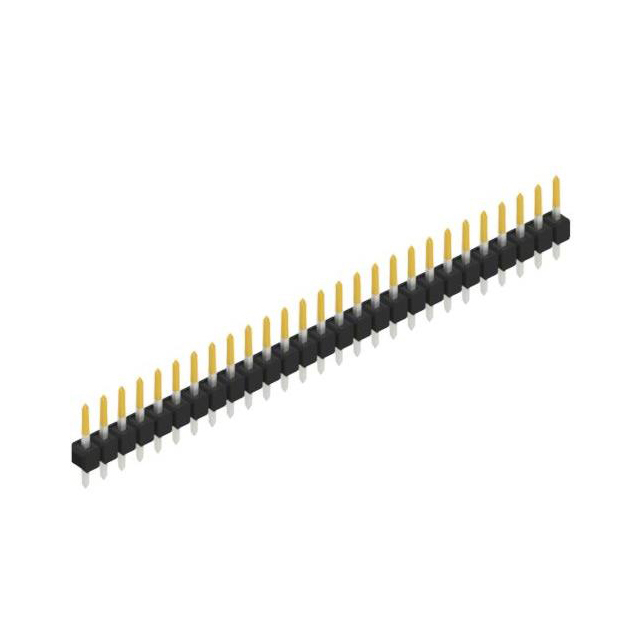

The SL 11 112 27 S is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 27 positions and a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated nickel, designed for through-hole mounting. The connector supports a mating temperature range of -40°C to +163°C and withstands soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Precision-engineered one-row configuration with 0.635 mm contact pitch
• Gold-plated nickel contacts for reliable electrical performance
• Through-hole straight mounting technique for board-to-board connections

Headers, Male Pins Applications

• Industrial electronic assemblies requiring high precision
• Board-to-board interconnect systems
• Wire-to-board connection applications

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' confirms gold plating on nickel substrate as indicated in official datasheets. Ensure compatibility with mating female connectors matching the 0.635 mm pitch specification. Confirm RoHS compliance status if required for your assembly process.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 27 positions is required. The 2.54 mm pitch ensures standard spacing compatibility. Gold plating offers superior corrosion resistance compared to tin variants. Verify mechanical dimensions against PCB layout constraints before integration.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of precision headers from Fischer Elektronik. The series offers various contact counts and plating options. The SL 11 112 27 S specifically denotes the 27-position variant with gold-plated contacts, distinguishing it from tin-plated or different count versions within the same family.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 112 series headers with identical 27-position counts and gold plating. Cross-manufacturer replacements must match the 2.54 mm pitch and 0.635 mm contact diameter precisely.
