SL 11 112 28 G

Headers, Male Pins Overview

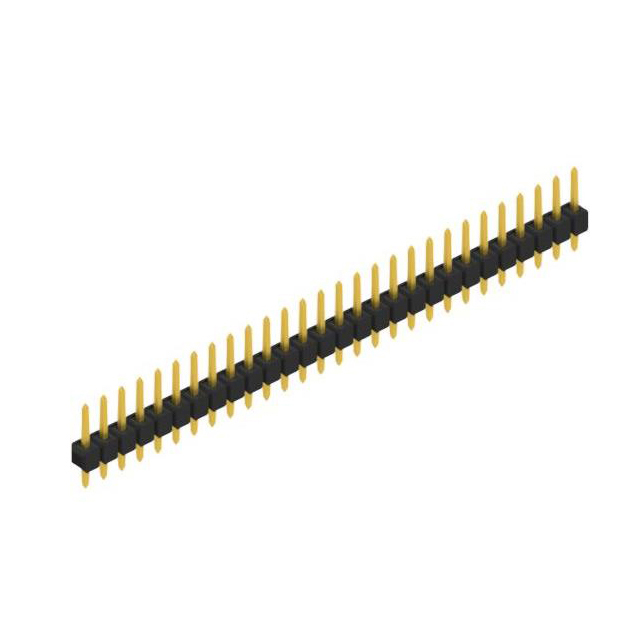

The SL 11 112 28 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 28 contacts and a 0.100-inch (2.54 mm) pitch. The connector utilizes through-hole termination for secure PCB mounting. Contact materials consist of copper alloy with gold plating to ensure reliable electrical performance. The design supports standard surface-mount technology applications requiring robust interconnection.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Through-hole terminal style ensures stable mechanical attachment to printed circuit boards

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system signal routing
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific contact count and pitch against project requirements before ordering. Confirm that the gold plating specification meets environmental durability needs. Ensure the through-hole footprint aligns with the target PCB layout. Check for any RoHS compliance documentation if required by regional regulations. Validate voltage and current ratings against operational loads.

Headers, Male Pins Selection Notes

Choose this component when a single-row, 2.54 mm pitch male header is required. The gold plating offers superior oxidation resistance compared to tin-only options. Through-hole mounting provides higher mechanical strength than surface-mount alternatives. Consider the physical height constraints of the assembly space. Evaluate the need for high-cycle mating durability which gold plating supports.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik headers. The series offers various contact counts and plating options. The SL 11 112 28 G specifically denotes a 28-position variant. It is designed for standard industrial and commercial electronic applications. The series maintains consistent dimensional tolerances across different pin counts.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 28-pin count, 2.54 mm pitch, and through-hole mounting style. Verify that alternative manufacturers offer gold-plated contacts for similar corrosion resistance. Ensure the overall height and width dimensions fit within the existing enclosure constraints. Cross-reference the mating force specifications to guarantee compatible counterpart connectors.
