SL 11 112 28 S

Headers, Male Pins Overview

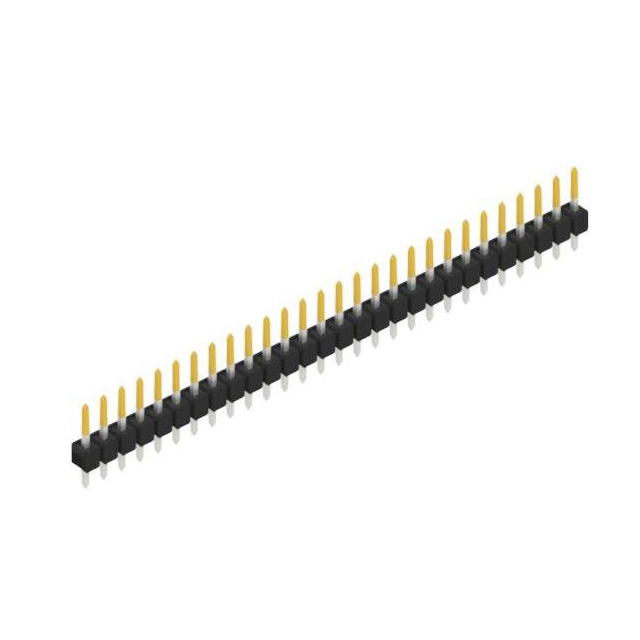

The SL 11 112 28 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and accommodates 28 positions. The connector utilizes through-hole termination for secure PCB mounting. Contact surfaces are finished with tin plating to ensure reliable electrical conductivity. The assembly incorporates a polyamide (PA46) insulator, providing structural integrity and thermal stability. This component is designed for standard board-to-board or wire-to-board interconnection applications requiring precise alignment.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standardized spacing
• Through-hole soldering technique for robust mechanical attachment
• Polyamide insulation material for high-temperature resistance
• Tin-plated contacts for corrosion protection and conductivity

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Industrial control system signal routing
• Consumer electronics internal wiring harnesses
• Test and measurement equipment prototyping

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' corresponds to the tin-plated variant in official Fischer Elektronik documentation. Confirm that the 28-position count matches the required circuit density. Ensure the through-hole footprint aligns with the target PCB design rules. Cross-reference the datasheet for exact dimensional tolerances before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 0.635 mm pitch is required. The 28-contact capacity suits moderate-density interconnect needs. Through-hole mounting is preferred over surface mount for enhanced mechanical durability. Tin plating offers a cost-effective solution for non-high-frequency applications. Verify compatibility with mating female connectors of matching pitch and row configuration.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 112 series of precision pin headers. The series offers various contact counts and plating options to suit different industrial requirements. The SL 11 112 28 S specifically denotes the 28-position variant with standard tin finish. It is engineered for reliability in demanding electronic environments, maintaining consistent performance across temperature variations.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided source data.
