SL 11 112 29 G

Headers, Male Pins Overview

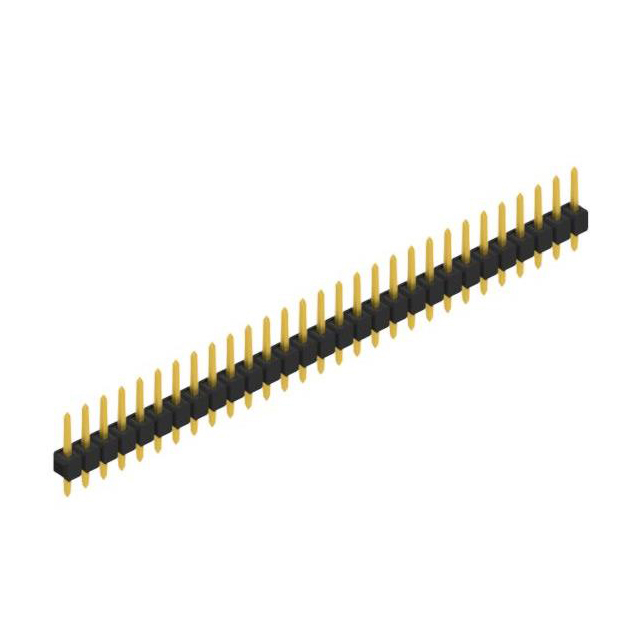

The SL 11 112 29 G is a single-row male pin header manufactured by Fischer Elektronik. It features 29 contacts with a 0.100 inch (2.54 mm) pitch, designed for through-hole mounting. The connector utilizes copper-tin alloy contacts with tin plating and polyamide insulation. Rated for 3 A current and 250 VAC voltage, it offers a total contact length of 0.441 inches (11.20 mm). The component is currently in active production status.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board interconnection
• Through-hole termination style ensuring secure PCB mounting
• Tin-plated copper-tin alloy contacts providing reliable conductivity
• Polyamide insulation material meeting UL 94 V-0 flammability rating

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system circuit boards
• Consumer electronics assembly
• Test and measurement device interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's official datasheet to confirm tin plating specifications and packaging details. Ensure the 29-position count matches the design requirement. Cross-reference the UL 94 V-0 rating and 250VAC/3A ratings with application safety standards. Confirm availability of the exact part number as distributor listings may vary in stock status or alternate suffixes.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. The 29-contact length accommodates specific board spacing needs. Consider the 3 A current rating and 250 VAC voltage limit for electrical compliance. The straight body orientation and square contact shape are suitable for standard PCB layouts requiring robust mechanical retention and consistent mating force.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of male headers from Fischer Elektronik. The series offers various contact counts ranging from 2 to 36 positions while maintaining a consistent 2.54 mm pitch and 11.20 mm total height. Variants differ primarily in contact quantity and plating options, such as gold or tin finishes, allowing customization for different environmental and electrical requirements within the same form factor.

Headers, Male Pins Replacement Considerations

Compatible alternatives include other Fischer Elektronik headers in the SL 11 112 series with matching 29 positions and 2.54 mm pitch. Verify that substitute parts maintain identical through-hole termination, straight orientation, and compatible current/voltage ratings. Ensure the replacement uses similar contact materials and insulation properties to guarantee mechanical and electrical compatibility.
