SL 11 112 29 S

Headers, Male Pins Overview

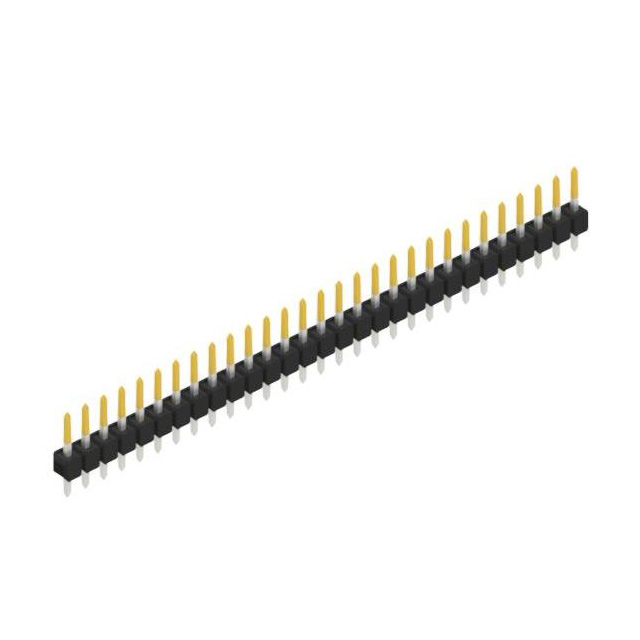

The SL 11 112 29 S is a single-row male pin header manufactured by Fischer Elektronik. It features 29 positions with a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole mounting and square contact shapes. Contact materials consist of copper-tin alloy, with selective gold plating on the mating surface (Ni+≥0.2µm Au) and tin plating on the sleeve (Ni+46µm Sn). Insulation is provided by polyamide (PA46), supporting a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Precision-engineered one-row configuration for reliable signal transmission
• Selective gold-plated contacts ensure stable electrical performance
• Polyamide insulation material provides thermal stability

Headers, Male Pins Applications

• Industrial PCB interconnections
• Electronic equipment signal routing
• Control panel assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates selective gold plating as documented in official datasheets. Confirm that the 29-position count matches the required circuit design. Ensure compatibility with standard 2.54 mm pitch sockets. Check RoHS compliance status if required for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 29 pins is required. The 2.54 mm pitch suits standard PCB layouts. Choose the 'S' variant specifically for applications demanding selective gold plating for enhanced corrosion resistance and conductivity over standard tin-only options.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of Fischer Elektronik headers. The series offers various pin counts and plating options. The SL 11 112 29 S represents a mid-range position count within this family, designed for general-purpose electronic interconnects requiring durable contact surfaces.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers from the SL 11 112 series with identical pitch and row count but different plating or pin counts. Cross-brand replacements must match the 2.54 mm pitch, 29-pin configuration, and through-hole mounting style.
