SL 11 112 29 Z

Headers, Male Pins Overview

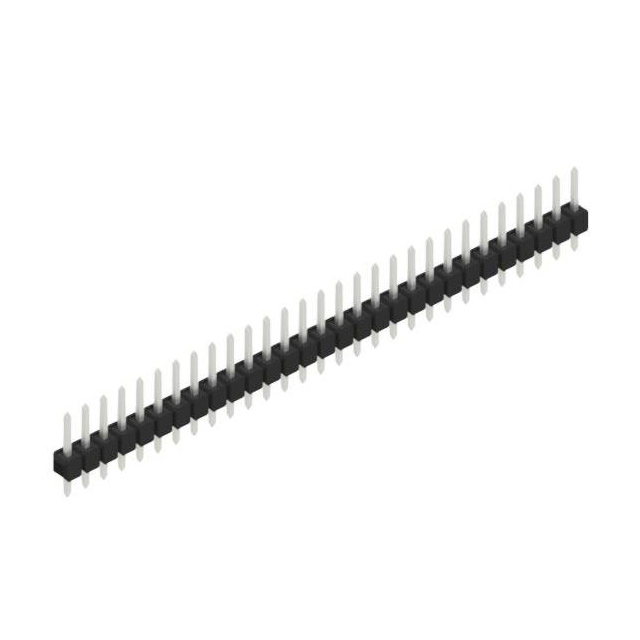

The Fischer Elektronik SL 11 112 29 Z is a single-row male pin header connector designed for through-hole PCB mounting. It features 29 positions with a 0.100 inch (2.54 mm) pitch. The contacts are made of copper-tin alloy with tin plating, offering a contact length of 0.213 inches (5.40 mm) for mating and 0.118 inches (3.00 mm) for the column. The total contact length is 0.441 inches (11.20 mm). The insulator height is 0.110 inches (2.80 mm), constructed from polyamide (PA46). The connector utilizes square-shaped pins and is supplied in bulk packaging.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections
• Through-hole mounting technology ensuring secure PCB attachment
• Tin-plated copper-tin contacts providing reliable electrical conductivity
• Polyamide insulation material supporting standard industrial operating temperatures

Headers, Male Pins Applications

• Industrial control system interconnections
• General-purpose electronic equipment assembly
• Test and measurement device prototyping

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm plating thickness and material specifications. Ensure the required contact count matches the 29-position variant. Confirm that the through-hole footprint aligns with the target PCB design. Check for any recent updates to the PA46 insulation rating or temperature limits before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. The 29-position count suits moderate-density interconnect needs. Consider the tin plating for general use rather than high-corrosion environments. Verify that the 0.100 inch spacing fits the available board real estate and mating connector constraints.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which offers various row counts and position options. The SL 11 112 designation typically indicates a single-row through-hole header. Similar parts in the series vary by pole count and contact finish, such as gold or nickel variants, allowing customization for different environmental and performance requirements.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 2.54 mm pitch and through-hole mounting. Verify compatibility based on the exact number of positions and contact material. Generic equivalents must match the 0.100 inch spacing and square pin profile to ensure proper mechanical fit.
