SL 11 112 3 Z

Headers, Male Pins Overview

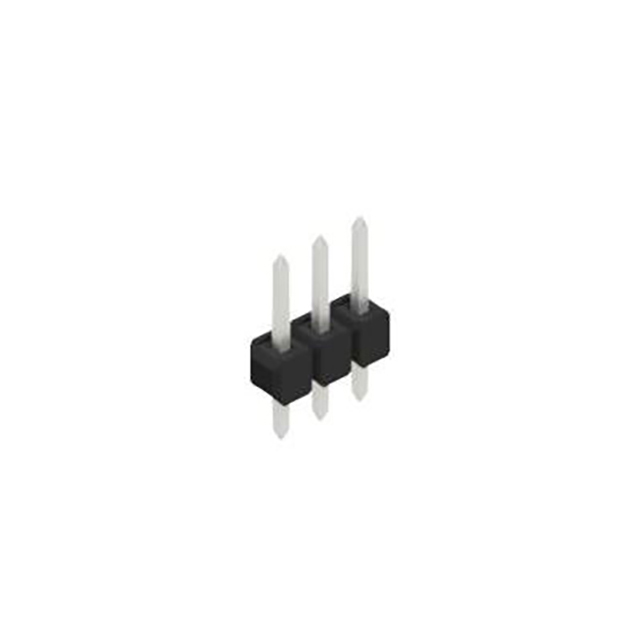

The SL 11 112 3 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains three contacts designed for through-hole mounting. The connector utilizes tin-plated copper-silver contact material with a square pin shape. Insulation is provided by PA 4.6 GF, rated UL 94 V-0. Electrical specifications include a nominal current of 3 A and a nominal voltage of 250 V AC, with an insulation resistance exceeding 10^7 Ω·m.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Tin-plated copper-silver contacts ensure reliable conductivity
• PA 4.6 GF insulation material provides thermal stability

Headers, Male Pins Applications

• General electronic circuit interconnections
• Board-to-board signal routing
• Wire-to-board connections in low-power systems

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Fischer Elektronik documentation to confirm contact plating and insulation material variations. Ensure compatibility with mating connectors regarding pitch and row count. Cross-reference datasheet electrical ratings with application requirements before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring a three-position male header with standard 2.54 mm spacing. Confirm that the 3 A current rating and 250 V AC voltage limits meet system operational needs. Verify that the through-hole assembly process aligns with manufacturing capabilities and that the PA 4.6 insulation meets environmental temperature constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of rectangular male pin headers from Fischer Elektronik. The series offers various contact counts and mounting styles. The SL 11 112 variant specifically denotes a straight, single-row design. This model represents a basic configuration within the broader family of board-level interconnect solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, three-contact count, and through-hole mounting type. Verify that alternative manufacturers provide comparable tin-plated contacts and PA 4.6 insulation. Ensure mechanical dimensions and locking features are compatible with existing PCB layouts and mating hardware.
