SL 11 112 30 G

Headers, Male Pins Overview

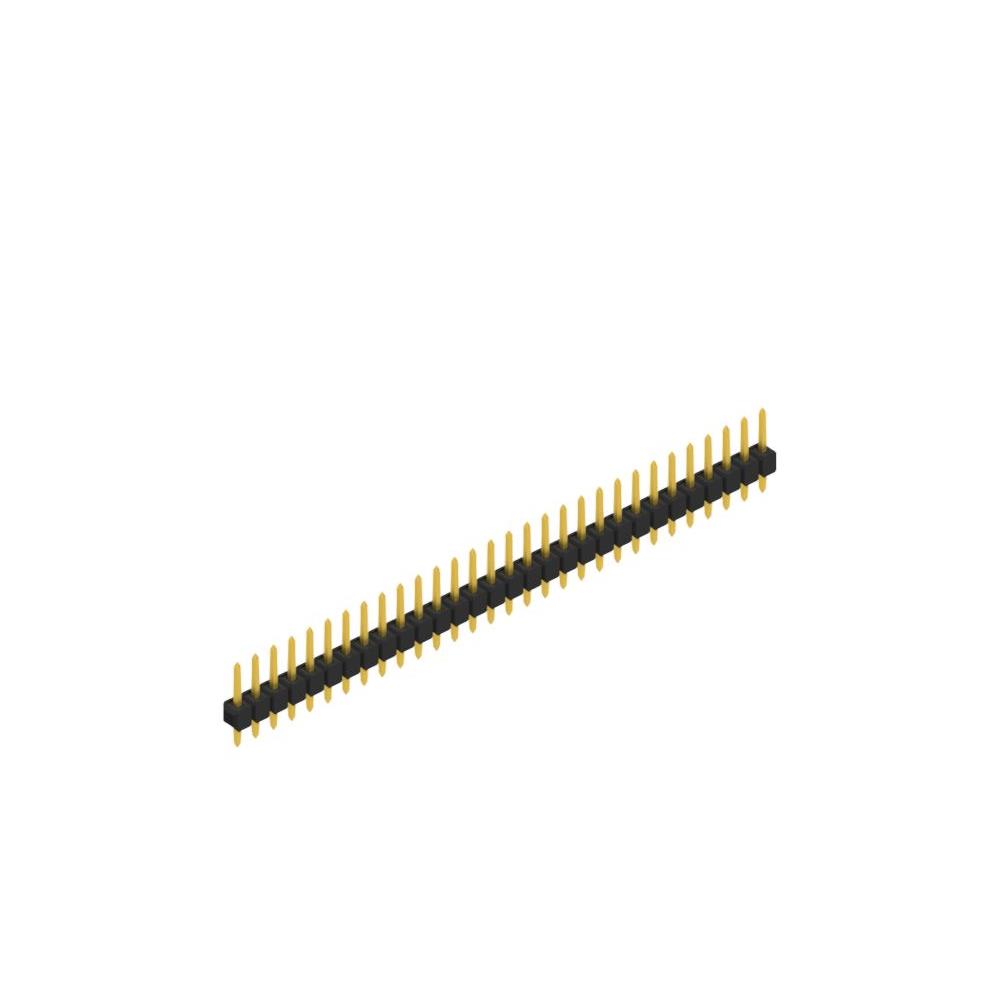

The SL 11 112 30 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features 30 contacts with a 2.54 mm pitch and through-hole termination. The housing is constructed from glass-filled polyamide (PA46) nylon, providing an insulation height of 2.80 mm. Contacts are made of copper-tin alloy with gold plating on the post section. The connector supports a voltage rating of 2000 V and a current capacity of 3 A. Operating temperature ranges from -40°C to +163°C, with reflow soldering tolerance at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Gold-plated contact posts ensure reliable signal transmission and corrosion resistance
• Glass-filled PA46 insulation material provides structural stability and thermal endurance
• Through-hole mounting facilitates secure PCB attachment
• High voltage isolation capability suitable for demanding electronic environments

Headers, Male Pins Applications

• Industrial control systems requiring high voltage isolation
• Test and measurement equipment interfaces
• Consumer electronics assemblies needing durable connections
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' confirms gold plating on the contact posts, as variations exist within the SL 11 112 series. Ensure compatibility with mating female connectors regarding pitch and row configuration. Confirm that the glass-filled PA46 insulation meets the thermal requirements of your assembly process, particularly regarding peak reflow temperatures.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold-plated contacts is required for high-voltage applications. The 2.54 mm pitch ensures standard spacing compatibility. Consider the 3 A current rating and 2000 V isolation limits against circuit demands. The through-hole design suits boards where mechanical strength during operation is prioritized over surface-mount space constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of Fischer Elektronik pin headers. The series offers various contact counts and plating options. The '30' indicates thirty positions, while 'G' specifies gold post plating. This series is designed for robust PCB interconnections in industrial and commercial electronics, emphasizing durability and electrical performance.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 30-position count, 2.54 mm pitch, and gold-plated male pins. Verify identical insulation material properties and voltage ratings. Cross-reference with other Fischer Elektronik series or generic equivalents ensuring compatible mechanical dimensions and thermal characteristics.
