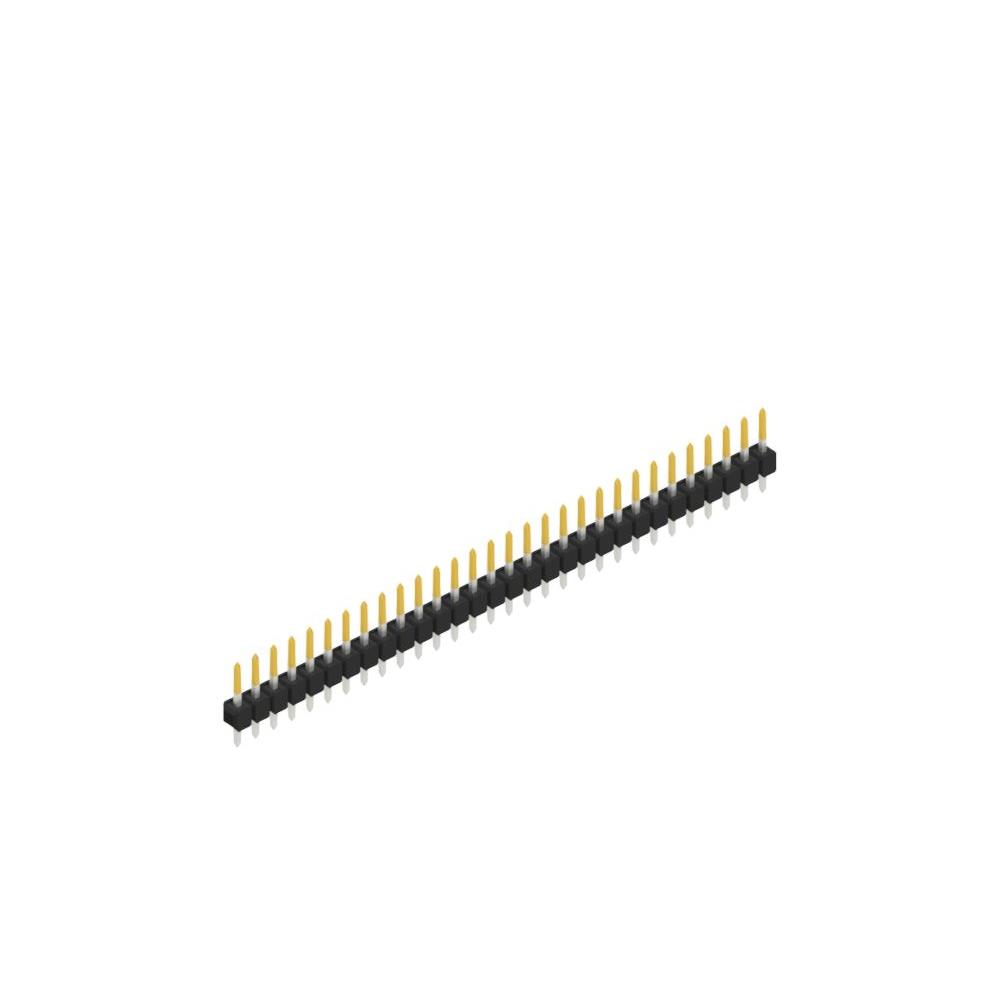

SL 11 112 30 S

$1.67

Description：ONE ROW, 0.635 MM
Series：SL 11 112
Mfr：Fischer Elektronik
Package：-

SKU:baef0cdb459d Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SL 11 112 30 S is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.635 MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SL 11 112 30 S

Description：ONE ROW, 0.635 MM
Series：SL 11 112
Mfr：Fischer Elektronik
Package：-
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：30
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.213" (5.40mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：0.441" (11.20mm)
Insulation Height：0.110" (2.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：157.5µin (4.00µm)
Contact Finish - Post：Tin
Contact Material：Copper Tin
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for SL 11 112 30 S

SL 11 112 30 S

Headers, Male Pins Overview

The Fischer Elektronik SL 11 112 30 S is a single-row PCB pin header featuring 30 contacts with a 2.54 mm pitch. Constructed from CuSn alloy, it utilizes selective gold plating on the contact interface and nickel plus tin on the sleeve. The connector supports a mating insertion temperature of 260°C for 10 seconds and operates within a range of -40°C to +163°C.

Headers, Male Pins Feature Summary

Single-row male pin header configuration for printed circuit board mounting
Selective gold plating ensures reliable signal transmission at the contact interface
Nickel and tin plated sleeves provide corrosion resistance and structural integrity

Headers, Male Pins Applications

Industrial control system interconnections
Precision electronic instrumentation modules
High-reliability PCB-to-PCB communication links

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates selective gold plating rather than standard tin or other finishes. Confirm that the 30-contact count matches the required circuit density. Ensure the operating temperature range aligns with the thermal profile of the assembly process.

Headers, Male Pins Selection Notes

Select this component when high conductivity and corrosion resistance are critical for signal integrity. The selective gold plating distinguishes it from standard tin-plated variants in the SL 11 112 series. Consider the 2.54 mm pitch compatibility with existing mating connectors.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of precision-engineered electronic components by Fischer Elektronik. The series offers various contact counts and plating options, including tin and gold, to suit different industrial requirements for rectangular connectors and pin headers.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers for this specific variant are not available in the provided documentation. Verify cross-compatibility with other manufacturers' 2.54 mm pitch headers only if mechanical dimensions and plating specifications match exactly.
