SL 11 112 30 Z

Headers, Male Pins Overview

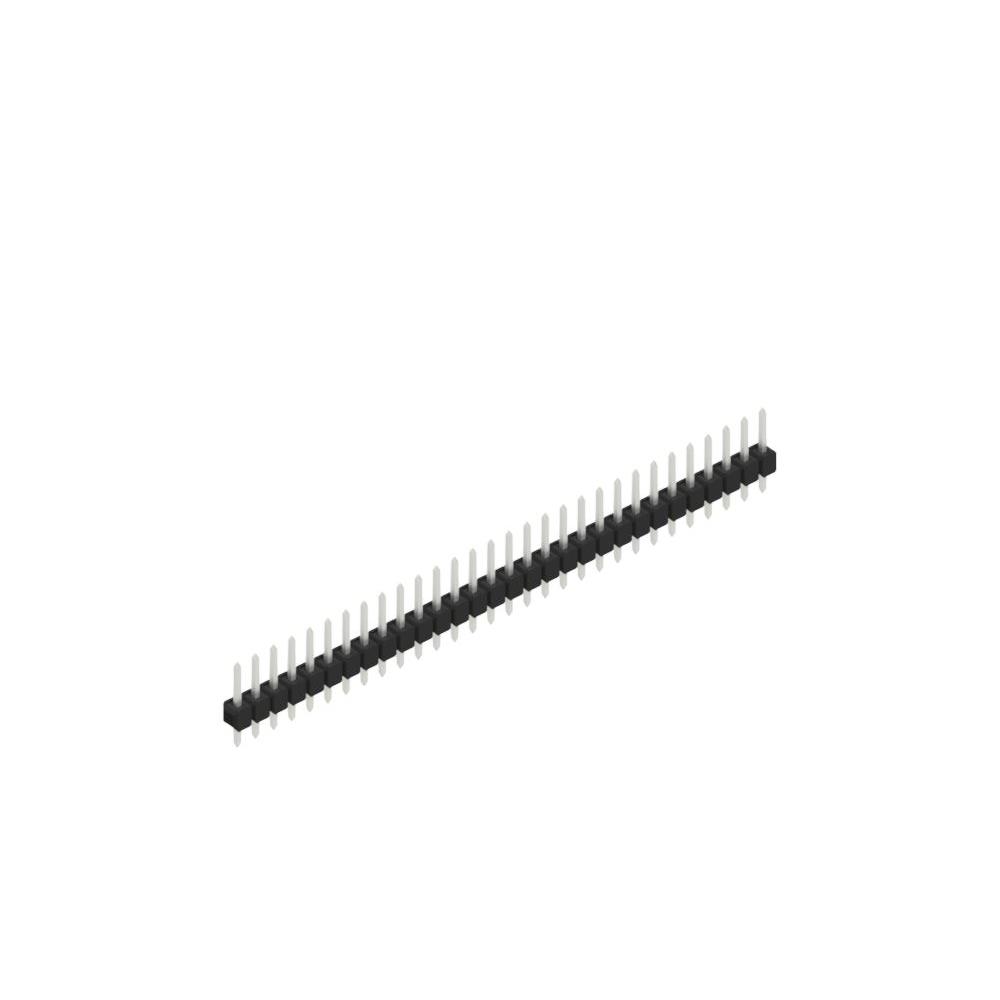

The SL 11 112 30 Z is a single-row PCB pin header manufactured by Fischer Elektronik. It features 30 male contacts with a 2.54 mm pitch spacing. The connector utilizes through-hole termination and straight orientation. Rated for 2000 V voltage and 3 A current, it employs bronze contact material. The overall height measures 11.2 mm. This component serves as a reliable interconnect solution for board-to-board or cable-to-board applications requiring high voltage isolation.

Headers, Male Pins Feature Summary

• High voltage insulation capability rated at 2000 V
• Precision single-row male pin configuration
• Through-hole mounting for secure PCB attachment

Headers, Male Pins Applications

• Industrial control systems
• Power supply units
• Electronic instrumentation

Headers, Male Pins Procurement Notes

Verify the specific contact count of 30 positions against system requirements. Confirm the 2.54 mm pitch matches the mating connector footprint. Ensure the 2000 V rating aligns with circuit isolation needs. Check that the straight through-hole profile fits within the assembly height constraints. Validate material specifications for environmental compatibility.

Headers, Male Pins Selection Notes

Choose this model when high voltage isolation is critical due to its 2000 V rating. The 3 A current capacity suits moderate power distribution tasks. Select based on the need for a single-row layout with standard 2.54 mm spacing. Consider the straight orientation for direct board connections. Evaluate the bronze contact material for corrosion resistance in the operating environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of precision electronic components from Fischer Elektronik. The series offers various contact counts while maintaining consistent 2.54 mm pitch and structural dimensions. It represents a standardized solution for industrial interconnect needs requiring robust electrical performance.

Headers, Male Pins Replacement Considerations

Amphenol ICC (FCI) part 609-77311-103-02LF-ND is listed as an alternative for similar configurations, though contact counts may differ. Verify mechanical fit and electrical ratings before substitution.
