SL 11 112 31 S

Headers, Male Pins Overview

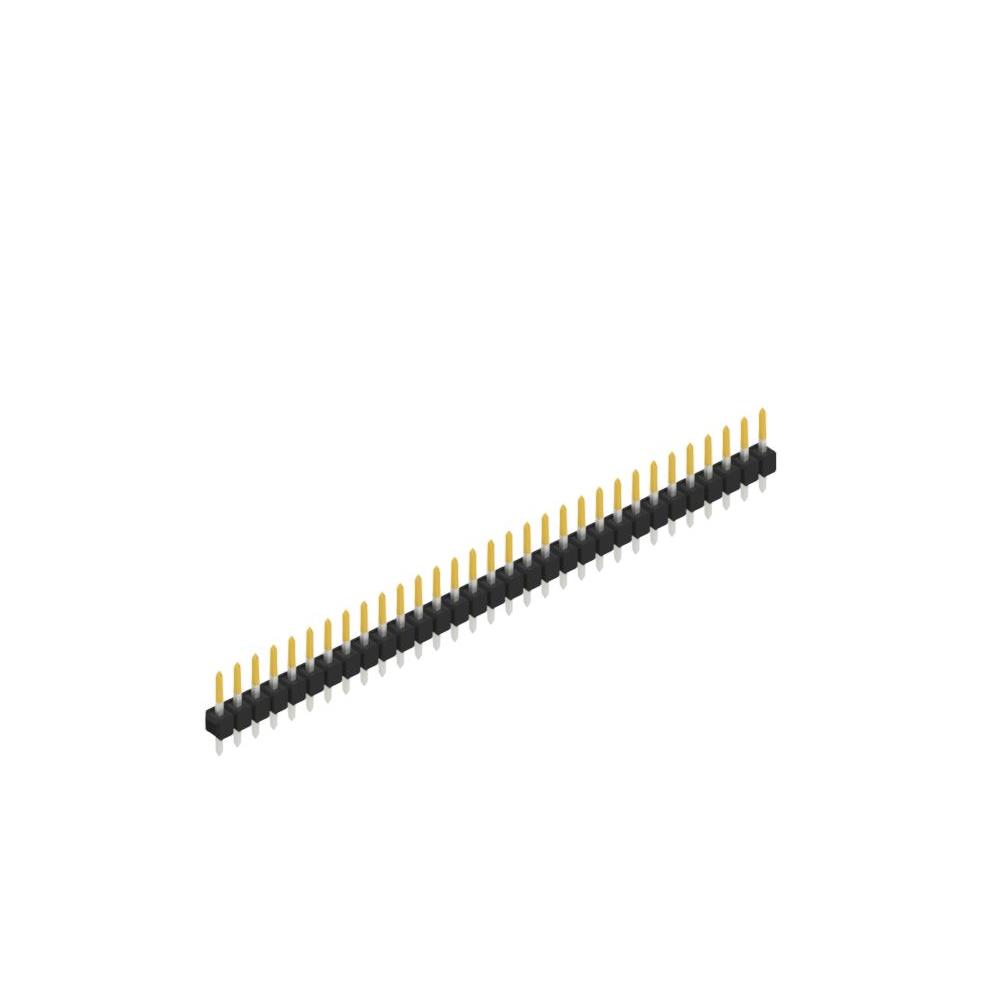

The SL 11 112 31 S is a single-row male pin header manufactured by Fischer Elektronik. It features 31 positions with a 0.100 inch (2.54 mm) pitch and 0.635 mm contact cross-section. Designed for through-hole mounting, the connector utilizes square pins made of copper-tin alloy with tin plating. The housing is constructed from polyamide (PA46). Key dimensions include an overall contact length of 11.20 mm, a mating length of 5.40 mm, and a column length of 3.00 mm. The insulation height is 2.80 mm.

Headers, Male Pins Feature Summary

• Single-row configuration with straight through-hole termination
• Tin-plated copper-tin alloy contacts for reliable conductivity
• Polyamide (PA46) insulating housing for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's official datasheet to confirm exact plating thickness and material specifications. Ensure the ordering part number matches the required contact count and row configuration. Cross-reference the RoHS compliance status directly with the current product documentation before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Consider the PA46 insulation material for operating temperatures up to 163°C. Verify that the 0.635 mm pin diameter fits the target PCB hole size and mating connector requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series of Fischer Elektronik pin headers. The series offers various contact counts and plating options. The SL 11 112 31 S specifically denotes a 31-position variant within this standardized line of board-level connectors.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 112 series headers with identical 2.54 mm pitch and through-hole termination. Verify mechanical dimensions and electrical ratings match before substitution.
