SL 11 112 31 Z

Headers, Male Pins Overview

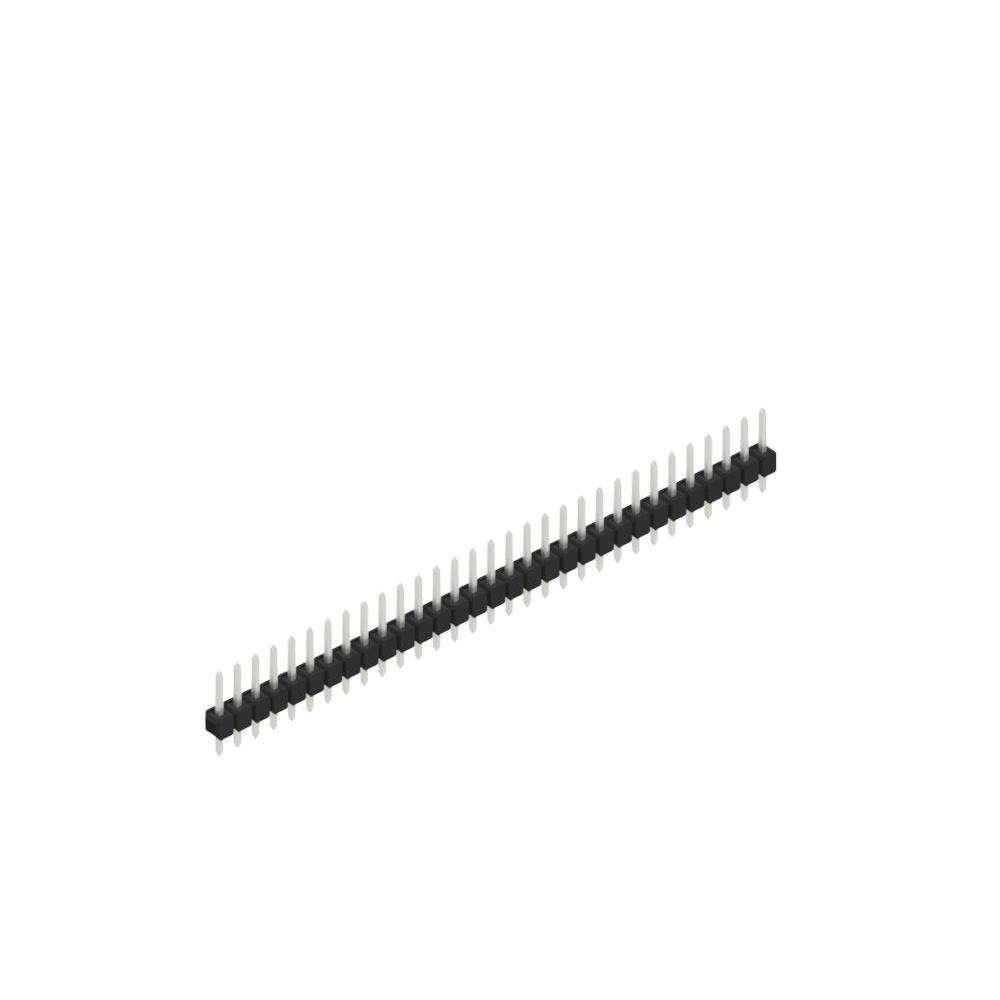

The SL 11 112 31 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 31 contacts with a 2.54 mm pitch spacing, designed for through-hole termination on printed circuit boards. The connector utilizes bronze contact material and offers a tin finish on the post interface. It operates within a temperature range of -40°C to +163°C and supports soldering conditions at 260°C for 10 seconds. The unit is classified as a straight orientation PCB pin header belonging to the SL 11 112 series.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections
• Through-hole terminal style ensuring secure mechanical attachment to PCBs
• Tin-plated bronze contacts providing reliable electrical conductivity

Headers, Male Pins Applications

• General purpose electronic assemblies requiring signal interconnection
• Prototyping boards and development kits
• Industrial control modules with standard pin spacing requirements

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the required circuit design, as the model number indicates 31 positions. Confirm that the tin plating specification aligns with corrosion resistance needs in the target environment. Ensure the operating temperature range of -40°C to +163°C meets the thermal profile of the application. Check compatibility with mating connectors regarding height and pitch dimensions before finalizing supply chain agreements.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole mounting. The bronze contact material combined with tin plating suits general connectivity tasks. Consider the straight orientation and specific 31-contact length against available panel space. Validate that the thermal endurance up to 163°C is sufficient for the intended operational conditions and reflow processes.

Headers, Male Pins Part Context

This part belongs to the SL 11 112 series from Fischer Elektronik, which provides various configurations of pin headers. The series typically offers different contact counts and plating options to suit diverse electronic integration needs. The SL 11 112 31 Z represents a specific variant within this lineup, distinguished by its 31-position layout and tin-finished bronze contacts for standard PCB applications.

Headers, Male Pins Replacement Considerations
